Installation [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FLOOR UNDER WIRE (for AWD)
    WARNING:

    Wear insulated gloves.

    1. Engage the 7 clamps to install the HV battery pack wire.
  2. INSTALL FLOOR UNDER WIRE (for AWD)
    WARNING:

    Wear insulated gloves.

    1. Engage the 2 clamps.
      GTY796135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
    3. Install the HV floor under wire with the nut.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    4. Insert the HV floor under wire into the floor panel hole and engage the grommet.
      GTY778712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install 3 new clamps in the order shown in the illustration.
      Fig 1: Clamp Installation Sequence
      GTY818571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the HV floor under wire with the 2 nuts.
      GTY778697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    7. Engage the 5 clamps.
      GTY808236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Engage the 2 clamps.
      GTY834528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FLOOR UNDER WIRE (for 2WD)
    WARNING:

    Wear insulated gloves.

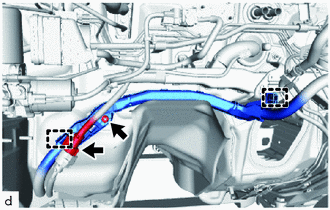

    1. Engage the 2 clamps.
      GTY796135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
    3. Install the HV floor under wire with the nut.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    4. Insert the HV floor under wire into the floor panel hole and engage the grommet.
      GTY778712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install 3 new clamps in the order shown in the illustration.
      GTY818571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the HV floor under wire with the 2 nuts.
      GTY778697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  4. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    Refer to INSTALLATION [10/2018 - 07/2022] Refer to INSTALLATION [07/2022 - ]

  5. INSTALL FRONT FLOOR COVER RH

    HINT:

    Perform the same procedure as for the front floor cover LH.

    Refer to PROCEDURE - Step 11

  6. INSTALL REAR FLOOR SIDE MEMBER COVER LH

    Refer to PROCEDURE - Step 8

  7. REMOVE NO. 1 FLOOR UNDER COVER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 22 [10/2018 - 07/2022] Refer to PROCEDURE - Step 24 [07/2022 - ]

  8. CONNECT HV BATTERY PACK WIRE (for AWD)

    Refer to PROCEDURE - Step 6

  9. CONNECT FLOOR UNDER WIRE (for AWD)

    Refer to PROCEDURE - Step 7

  10. INSTALL INVERTER TERMINAL COVER (for AWD)

    Refer to PROCEDURE - Step 8

  11. CONNECT FLOOR UNDER WIRE (for AWD)
    WARNING:

    Wear insulated gloves.

    1. Connect the shield ground to the HV battery.
    2. Connect the 2 HV battery junction block assembly connectors.
      NOTE:

      Make sure that the connectors are connected securely.

  12. CONNECT FLOOR UNDER WIRE (for 2WD)
    WARNING:

    Wear insulated gloves.

    1. Connect the shield ground to the HV battery.
    2. Connect the 2 HV battery junction block assembly connectors.
      NOTE:

      Make sure that the connectors are connected securely.

  13. INSTALL NO. 1 HV BATTERY COVER PANEL RH

    See step  14

  14. INSTALL BATTERY COOLING BLOWER ASSEMBLY (for AWD)

    See step  1

  15. INSTALL REAR SEAT CUSHION LEG SUB-ASSEMBLY

    See step  16

  16. INSTALL REAR SEAT SIDE GARNISH RH (for AWD)

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 34 [10/2018 - 10/2020] Refer to PROCEDURE - Step 34 [10/2020 - 07/2022] Refer to PROCEDURE - Step 34 [07/2022 - ]

  17. INSTALL REAR SEATBACK ASSEMBLY RH (for AWD)

    Refer to PROCEDURE - Step 3 [10/2018 - 07/2022] Refer to PROCEDURE - Step 3 [07/2022 - ]

  18. INSTALL LUGGAGE ROOM REAR COVER (for AWD)

    Refer to PROCEDURE - Step 9

  19. INSTALL REAR DECK FLOOR BOX (for AWD)

    Refer to PROCEDURE - Step 58 [10/2018 - 10/2020] Refer to PROCEDURE - Step 57 [10/2020 - 07/2022] Refer to PROCEDURE - Step 57 [07/2022 - ]

  20. INSTALL DECK BOARD ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 66 [10/2018 - 10/2020] Refer to PROCEDURE - Step 66 [10/2020 - 07/2022] Refer to PROCEDURE - Step 64 [07/2022 - ]

  21. INSTALL REAR UNDER COVER

    See step  17

  22. INSTALL REAR UNDER SIDE COVER LH

    Refer to PROCEDURE - Step 40 [10/2018 - 10/2020] Refer to PROCEDURE - Step 40 [10/2020 - 07/2022] Refer to PROCEDURE - Step 40 [07/2022 - ]

  23. INSTALL REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 42 [10/2018 - 10/2020] Refer to PROCEDURE - Step 42 [10/2020 - 07/2022] Refer to PROCEDURE - Step 42 [07/2022 - ]

  24. INSTALL REAR UNDER SIDE COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 41 [10/2018 - 10/2020] Refer to PROCEDURE - Step 41 [10/2020 - 07/2022] Refer to PROCEDURE - Step 41 [07/2022 - ]

  25. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 43 [10/2018 - 10/2020] Refer to PROCEDURE - Step 43 [10/2020 - 07/2022] Refer to PROCEDURE - Step 43 [07/2022 - ]

  26. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 1 [10/2018 - 07/2022] Refer to PROCEDURE - Step 1 [07/2022 - ]

  27. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 5 [10/2018 - 07/2022] Refer to PROCEDURE - Step 4 [07/2022 - ]

  28. CONNECT FLOOR UNDER WIRE

    Refer to PROCEDURE - Step 15

  29. CONNECT ENGINE WIRE
    WARNING:

    Wear insulated gloves.

    NOTE:

    Do not allow any foreign matter or water to enter the inverter with converter assembly.

    1. Connect the 2 inverter with converter assembly connectors and move each lock lever as shown in the illustration.
      GTY787088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • To prevent damage due to static electricity, do not touch the terminals of the disconnected connectors.
      • Do not damage the terminals, connector housing or inverter with converter assembly when connecting the connectors.
      • Do not touch the waterproof seal or terminals of the connector.
  30. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [10/2018 - ]
