Installation [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INVERTER PROTECTOR
    1. Install the inverter protector to the inverter with converter assembly with the bolt.

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

  2. INSTALL WIRE HARNESS CLAMP BRACKET
    1. Install the wire harness clamp bracket to the inverter with converter assembly with the 2 bolts.

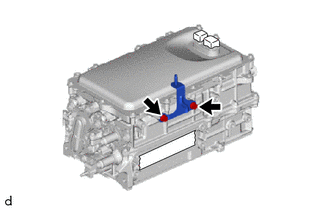

      GTY787074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

    2. Install the wire harness clamp bracket to the inverter with converter assembly with the bolt.
      GTY787073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

    3. Install the wire harness clamp bracket to the inverter with converter assembly with the 2 bolts.
      GTY787072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

  3. INSTALL TRANSMISSION CONTROL CABLE SUPPORT
    1. Install the transmission control cable support to the inverter with converter assembly with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  4. INSTALL NO. 2 INVERTER BRACKET
    1. Set the inverter with converter assembly on wooden blocks.
      GTY795281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      NOTE:

      Make sure to support the inverter with converter assembly at the positions shown in the illustration, otherwise it may be damaged.

      GTY829888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the No. 2 inverter bracket to the inverter with converter assembly with the 2 bolts.
    3. Fully tighten the 2 bolts in the order shown in the illustration.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

  5. INSTALL NO. 1 INVERTER BRACKET
    1. Temporarily install the No. 1 inverter bracket to the inverter with converter assembly with the 2 bolts.
      Fig 1: No. 1 Inverter Bracket Bolt Tightening Sequence
      GTY828658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
    2. Fully tighten the 2 bolts in the order shown in the illustration.

      Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

  6. INSTALL INVERTER WITH CONVERTER ASSEMBLY
    WARNING:

    Wear insulated gloves.

    1. Temporarily install the inverter with converter assembly with the 5 bolts and 2 nuts.
      NOTE:
      • When installing the inverter with converter assembly, be careful not to damage the parts around it.
      • To prevent damage, do not hold the inverter with converter assembly by the connectors, brackets or cooling pipes.
      • To prevent damage due to static electricity, do not touch the terminals of the disconnected connectors.
      • Make sure that the inverter with converter assembly is positioned so that the stud bolts are in contact with the base of the U-shaped portions of the No. 1 inverter bracket.

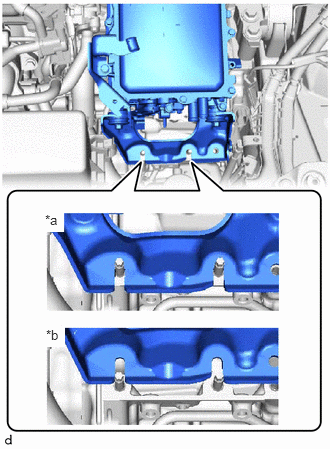

        GTY833926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Correct
        *b Incorrect

      HINT:

      If the bolts and nuts are not tightened appropriately, the inverter with converter assembly may make an abnormal noise.

    2. Fully tighten the bolt (A).
      GTY784673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

    3. Fully tighten the 3 bolts (B).

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

    4. Fully tighten the bolt (C).

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

    5. Fully tighten the 2 nuts (D).

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

  7. CONNECT MOTOR CABLE
    WARNING:

    Wear insulated gloves.

    NOTE:

    Do not allow any foreign matter or water to enter the inverter with converter assembly.

    1. Temporarily connect the motor cable to the inverter with converter assembly with the 4 bolts.
      NOTE:
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
    2. Fully tighten the bolt (A).

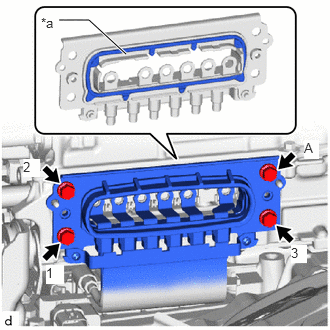

      Fig 2: Motor Cable Bolt Tightening Sequence
      GTY780545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    3. Fully tighten the 3 bolts in the order shown in the illustration to connect the motor cable to the inverter with converter assembly.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    4. Temporarily install the 6 bolts.
      NOTE:
      • To prevent the threads from being damaged, temporarily tighten the 6 bolts by hand.
      • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
      GTY542955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using an insulated tool, fully tighten the 6 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
      • Be sure to use a torque wrench to tighten the bolts.
  8. INSTALL INVERTER COVER
    WARNING:

    Wear insulated gloves.

    1. Install the inverter cover to the inverter with converter assembly with the 2 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:
      • Visually confirm that the inverter cover waterproof seal is securely installed before installing the inverter cover.
      • Do not touch the waterproof seal of the inverter cover.
      • Make sure that the interlock is fully engaged.
      • Do not damage the terminals, interlock connector or inverter with converter assembly during installation.
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
      • Do not remove or excessively tighten the screw of the inverter cover.
        GTY596586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Inverter Cover
        *a Screw
      • Although the inverter cover may feel loose, this is not due to a malfunction.

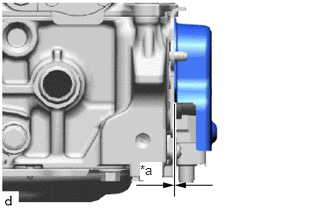

      • Push in the inverter cover until it contacts the inverter with converter assembly.
        GTY832685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a No Gap
  9. INSTALL AIR CLEANER BRACKET
    1. Install the air cleaner bracket with the bolt.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    2. Engage the clamp.
  10. CONNECT INLET NO. 1 INVERTER COOLING HOSE
    1. Connect the inlet No. 1 inverter cooling hose to the inverter with converter assembly and slide the clip to secure it.
      NOTE:

      To prevent foreign matter from entering the inverter with converter assembly and inverter cooling system, do not remove the pieces of cloth from the pipe and disconnected hose until installation.

      HINT:

      • Make sure that the clip is positioned as shown in the illustration.
      • Make sure to align the alignment mark of the hose with the rib of the inverter with converter assembly.

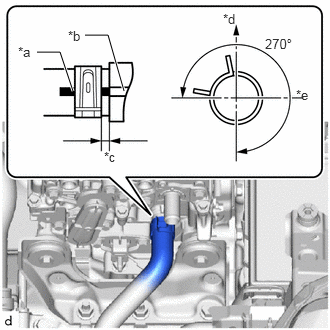

      GTY821223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Alignment Mark (Pink)
      *b Rib
      *c 2 to 6 mm (0.0787 to 0.236 in.)
      *d Up
      *e LH Side
  11. CONNECT NO. 1 INVERTER COOLING HOSE ASSEMBLY

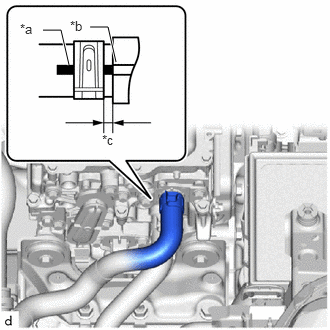

    1. Connect the outlet No. 1 inverter cooling hose to the inverter with converter assembly and slide the clip to secure it.
      NOTE:

      To prevent foreign matter from entering the inverter with converter assembly and inverter cooling system, do not remove the pieces of cloth from the pipe and disconnected hose until installation.

      HINT:

      • Make sure that the clip is positioned as shown in the illustration.
      • Make sure to align the alignment mark of the hose with the rib of the inverter with converter assembly.
      GTY815911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Alignment Mark (Light blue)
      *b Rib
      *c 2 to 6 mm (0.0787 to 0.236 in.)
  12. CONNECT ENGINE WIRE
    WARNING:

    Wear insulated gloves.

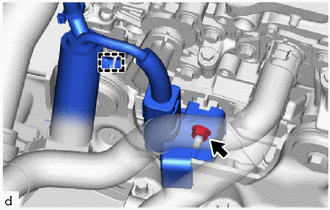

    1. Engage the clamp and connect the engine wire to the inverter with converter assembly.
      GTY787024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the nut.
      NOTE:

      To prevent the threads from being damaged, temporarily tighten the nut by hand.

    3. Fully tighten the nut.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    4. Engage the 2 claws to close the engine wire terminal cover.
    5. Connect the engine wire to the inverter with converter assembly with the bolt.

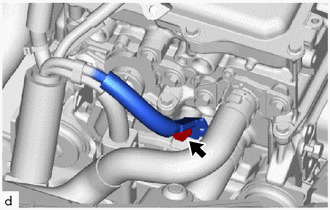

      GTY787031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    6. Connect the engine wire to the inverter with converter assembly with the bolt.

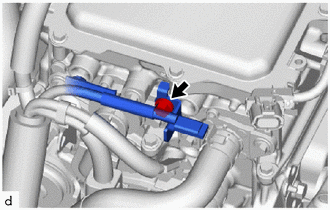

      GTY787039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  13. INSTALL WIRE HARNESS CLAMP BRACKET
    1. Install the wire harness clamp bracket to the inverter with converter assembly with the nut.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  14. CONNECT HV AIR CONDITIONING WIRE
    WARNING:

    Wear insulated gloves.

    1. Engage the clamp.
    2. Connect the HV air conditioning wire to the inverter with converter assembly and install the 2 bolts.

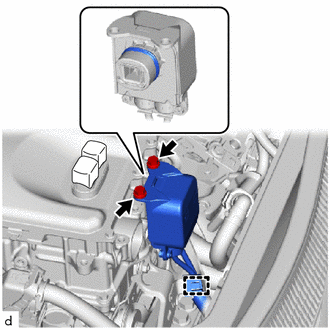

      GTY787037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or inverter with converter assembly when connecting the connector.
  15. CONNECT FLOOR UNDER WIRE
    WARNING:

    Wear insulated gloves.

    1. Engage the 2 clamps.
    2. Connect the HV floor under wire to the inverter with converter assembly and install the 2 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:
      • Do not allow any foreign matter or water to enter the inverter with converter assembly.
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not damage the terminals, connector housing or inverter with converter assembly when connecting the connector.

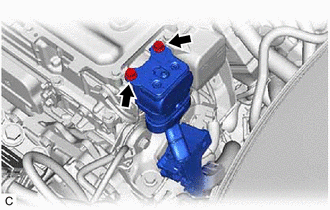

      GTY600528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. CONNECT ENGINE WIRE
    WARNING:

    Wear insulated gloves.

    NOTE:

    Do not allow any foreign matter or water to enter the inverter with converter assembly.

    1. Engage the clamp to connect the engine wire.
    2. Install the 2 nuts.

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

    3. Connect the 2 inverter with converter assembly connectors move the lock lever as shown in the illustration.
      GTY787088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • To prevent damage due to static electricity, do not touch the terminals of the disconnected connectors.
      • Do not damage the terminals, connector housing or inverter with converter assembly when connecting the connectors.
      • Do not touch the waterproof seal or terminals of the connectors.
    4. Engage the 2 claws to connect the engine wire to the engine room relay block.
    5. Install the nut.

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

    6. Engage the 2 claws to connect the engine wire to the engine room relay block.
    7. Connect the 3 connectors to the engine room relay block.
  17. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 43 [10/2018 - 07/2022] Refer to PROCEDURE - Step 43 [07/2022 - ]

  18. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  19. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  20. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Engage the 2 clamps.
    2. Install the bolt to connect the transmission control cable assembly.

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

  21. INSTALL ECM

    Refer to INSTALLATION [10/2018 - ]

  22. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 48 [10/2018 - 07/2022] Refer to PROCEDURE - Step 48 [07/2022 - ]

  23. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [10/2018 - ]

  24. ADD COOLANT (for Inverter)

    Refer to PROCEDURE - Step 3

  25. INSPECT FOR COOLANT LEAK (for Inverter)

    See step  1

  26. INSTALL REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 5

  27. PERFORM RESOLVER LEARNING

    Refer to UTILITY [10/2018 - ]
