Removal [10/2018 - 07/2022]: Procedure

  1. PRECAUTION (for HV Model)
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to INITIALIZATION [10/2018 - 07/2022]

  2. DISABLE BRAKE CONTROL (for HV Model)

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR FLOOR SIDE MEMBER COVER LH (for LH Side)
    1. Remove the 3 bolts.

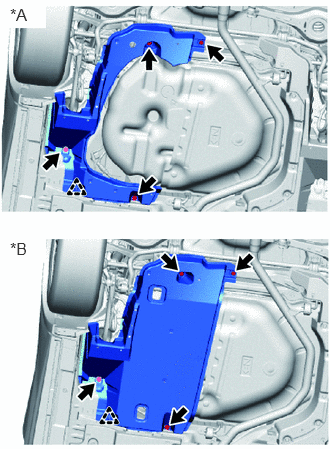

      GTY801542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A
      *B for Type B
    2. Remove the clip.
    3. Disengage the clip to remove the rear floor side member cover LH.
  4. REMOVE NO. 1 FLOOR UNDER COVER ASSEMBLY (for RH Side)
    1. Remove the 3 bolts.

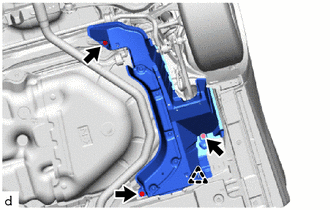

      GTY820457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip to remove the No. 1 floor under cover assembly.
  5. REMOVE REAR WHEEL

    Refer to REMOVAL [10/2018 - ]

  6. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

    See step  4

  7. REMOVE REAR DISC

    Refer to PROCEDURE - Step 16

  8. DISCONNECT SKID CONTROL SENSOR WIRE

    See step  6

  9. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

    See step  7

  10. REMOVE FLEXIBLE HOSE BRACKET
    1. Remove the bolt and flexible hose bracket from the rear axle carrier sub-assembly.

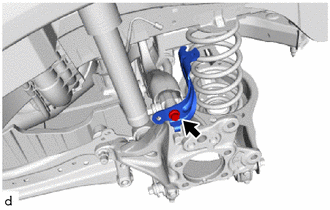

      GTY813100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)

    Refer to REMOVAL [10/2018 - ]

  12. REMOVE REAR STABILIZER LINK ASSEMBLY

    Refer to PROCEDURE - Step 4

  13. REMOVE REAR COIL SPRING

    Refer to PROCEDURE - Step 5

  14. REMOVE REAR UPPER COIL SPRING INSULATOR

    Refer to PROCEDURE - Step 6

  15. REMOVE REAR LOWER COIL SPRING INSULATOR

    Refer to PROCEDURE - Step 7

  16. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

    Refer to PROCEDURE - Step 9

  17. LOOSEN REAR SHOCK ABSORBER ASSEMBLY
    1. Loosen the nut of the rear shock absorber assembly.
      GTY814030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Axle Carrier Pin
      NOTE:

      Hold the rear axle carrier pin while rotating the nut.

  18. REMOVE REAR AXLE CARRIER SUB-ASSEMBLY
    1. Loosen the 2 bolts (A) of the rear trailing arm assembly.
      GTY818163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a jack and a wooden block, support the rear axle carrier sub-assembly.

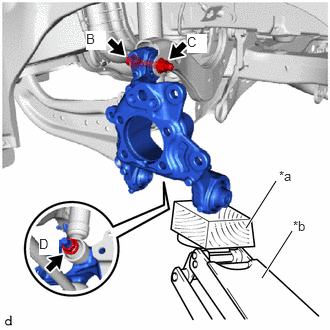

      GTY792445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Jack
      NOTE:
      • When jacking up the rear axle carrier sub-assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
    3. Loosen the bolt (B) of the rear axle carrier sub-assembly.
      NOTE:

      Because the nut (C) has its own stopper, do not turn the nut (C). Loosen the bolt (B) with the nut (C) secured.

    4. Remove the 2 bolts (A) to separate the rear trailing arm assembly from the rear axle carrier sub-assembly.
    5. Remove the nut (D) to separate the rear shock absorber assembly from the rear axle carrier sub-assembly.
    6. Remove the bolt (B), nut (C) and rear axle carrier sub-assembly from the rear upper control arm assembly.
