Removal [10/2018 - 07/2022]: Procedure

Refer to REMOVAL [10/2018 - ]

• for 2WD:

  Refer to PROCEDURE - Step 3

• for AWD:

  Refer to PROCEDURE - Step 3

• for 2WD:

  Refer to PROCEDURE - Step 4

• for AWD:

  Refer to PROCEDURE - Step 4

• for 2WD:

  Refer to k PROCEDURE - Step 1

• for AWD:

  Refer to PROCEDURE - Step 2

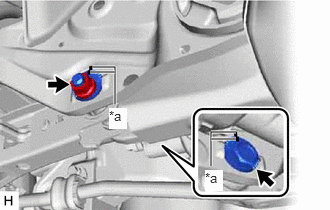

1. for 2WD:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   1. Place matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.
2. for AWD:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   1. Place matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.
3. Loosen the nut (rear suspension member sub-assembly side) of the rear No. 2 suspension arm assembly.
   NOTE:

   Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

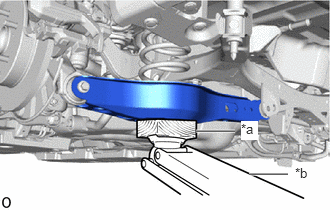

4. Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack

   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

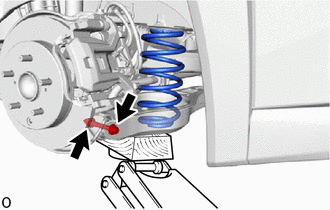

5. Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) from the rear axle carrier sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

6. Slowly lower the rear No. 2 suspension arm assembly, and then remove the rear coil spring.

1. Remove the rear upper coil spring insulator from the vehicle.

1. Remove the rear lower coil spring insulator from the rear No. 2 suspension arm assembly.
