Removal [10/2018 - 07/2022]: Procedure

REMOVE REAR WHEEL
Refer to REMOVAL [10/2018 - ]
REMOVE REAR FLOOR SIDE MEMBER COVER LH
- for 2WD:
  Refer to PROCEDURE - Step 3
- for AWD:
  Refer to PROCEDURE - Step 3
REMOVE NO. 1 FLOOR UNDER COVER ASSEMBLY
- for 2WD:
  Refer to PROCEDURE - Step 4
- for AWD:
  Refer to PROCEDURE - Step 4

REMOVE REAR STABILIZER LINK ASSEMBLY LH

Remove the cap.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

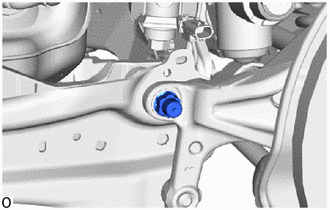

Loosen the nut (A) of the rear stabilizer link assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

Loosen the nut (B) of the rear stabilizer link assembly LH.
NOTE:
When loosing the nut, keep the bolt from rotating.

Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Wooden Block
*b	Jack

NOTE:

When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
Make sure to perform this operation with the vehicle kept as low as possible.

Remove the bolt, 2 nuts and rear stabilizer link assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.

REMOVE REAR STABILIZER BAR

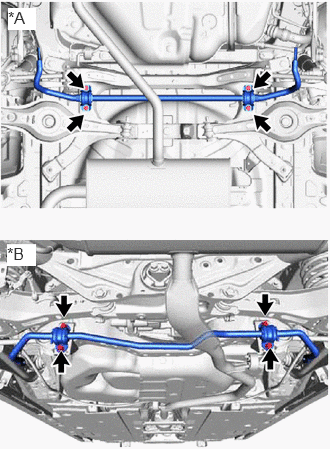

Remove the 4 bolts, rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushes from the rear suspension member sub-assembly.

*A	for 2WD
*B	for AWD

REMOVE REAR NO. 1 STABILIZER BAR BRACKET

Remove the 2 rear No. 1 stabilizer bar brackets from the 2 rear stabilizer bushes.

*A	for 2WD
*B	for AWD

REMOVE REAR STABILIZER BUSH

Remove the 2 rear stabilizer bushes from the rear stabilizer bar.

*A	for 2WD
*B	for AWD
