Removal [10/2019 - 07/2022]: Procedure

PRECAUTION
NOTE:
When replacing the radio receiver assembly or navigation ECU, always replace it with a new one. If a radio receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur.

Refer to PRECAUTION [10/2019 - 07/2022]
REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET
Refer to REMOVAL [10/2019 - 07/2022]
REMOVE TELEPHONE ECU WIRE (w/ Roof Antenna)
Refer to PROCEDURE - Step 3

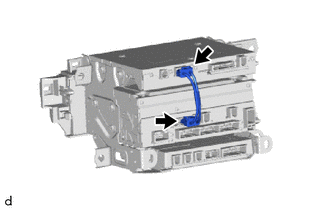

REMOVE NO. 1 NAVIGATION WIRE

Disconnect the 2 connectors to remove the No. 1 navigation wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE DCM (TELEMATICS TRANSCEIVER) (w/ Roof Antenna)
Refer to PROCEDURE - Step 4

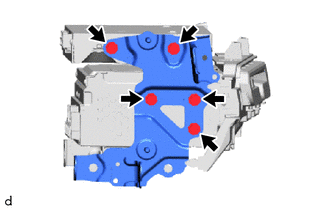

REMOVE NO. 1 RADIO BRACKET

Remove the 5 bolts and No. 1 radio bracket from the navigation ECU and radio receiver assembly.

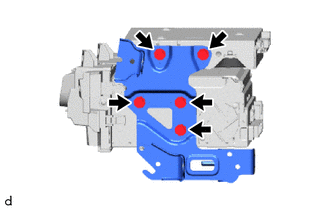

REMOVE NO. 2 RADIO BRACKET

Remove the 5 bolts and No. 2 radio bracket from the navigation ECU and radio receiver assembly.
