Removal [10/2018 - 07/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to INITIALIZATION [10/2018 - 07/2022]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2018 - 07/2022]

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Remove the 2 screws.
      GTY805461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the claws and guide to remove the No. 1 instrument panel under cover sub-assembly as shown in the illustration.
    3. Disconnect the connector.
      GTY805655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the claws to remove the DLC3 connector.
    5. Using a clip remover, disengage the wire harness clamp.
  4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Disengage the claws and guides to remove the No. 2 instrument panel under cover sub-assembly as shown in the illustration.
      GTY834394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disconnect the connector.
      GTY805653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

    See step  9 See step  9

  6. REMOVE INSTRUMENT SIDE PANEL RH

    HINT:

    Use the same procedure as for the LH side.

    See step  10 See step  10

  7. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 5

  8. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Disengage the clips as shown in the illustration.
      GTY793924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tether Clip
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the tether clip to remove the No. 1 instrument panel safety pad sub-assembly as shown in the illustration.
    3. Disconnect the connector.
      GTY805636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Remove the 5 screws.
      GTY809684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claws to remove the glove compartment door assembly as shown in the illustration.
    3. Disconnect the connector.
      GTY805648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the hook to remove the wire harness.
  10. REMOVE GLOVE BOX LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 9

  11. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    1. Disengage the hook.
      GTY806877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw and glove compartment door stopper sub-assembly.
      GTY806878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE GLOVE COMPARTMENT DOOR CHECK CUSHION
    GTY806873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedure as for the opposite side.

    1. Disengage the claws to remove the glove compartment door check cushion.
  13. REMOVE GLOVE COMPARTMENT DOOR LOCK ASSEMBLY
    1. Remove the 2 screws.
      GTY806875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the glove compartment door lock assembly.
  14. REMOVE LOWER INSTRUMENT CENTER COVER
    1. Disengage the claws and hook to remove the lower instrument cover as shown in the illustration.
      GTY803821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  15. REMOVE LOWER INSTRUMENT PANEL FINISH CENTER PANEL
    1. Remove the screw.
      GTY824629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the clips to remove the lower instrument panel finish center panel as shown in the illustration.
    3. Disconnect the connector.
      GTY805640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a clip remover, disengage the wire harness clamp.
  16. REMOVE REFRESHING SEAT SWITCH (w/ Seat Heater System)

    Refer to PROCEDURE - Step 10

  17. REMOVE INSTRUMENT PANEL FINISH PANEL
    1. Remove the bolt.
      GTY787668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the clips to remove the instrument panel finish panel as shown in the illustration.
  18. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
    1. Using a molding remover A, disengage the clips to remove the No. 1 console upper panel garnish as shown in the illustration.
      GTY779831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  19. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
    1. Using a molding remover A, disengage the clips to remove the No. 2 console upper panel garnish as shown in the illustration.
      GTY804575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  21. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

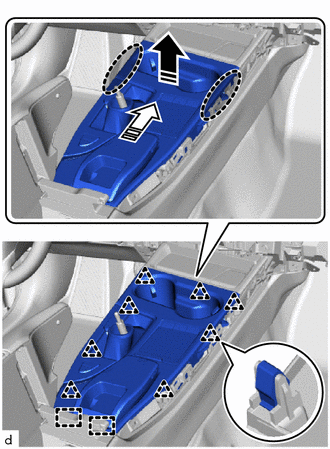

    1. Disengage the clips and guides to remove the upper console panel sub-assembly as shown in the illustration.
      GTY821850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disconnect the 4 connectors.
      GTY805677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a clip remover, disengage the wire harness clamp.
  22. REMOVE UPPER CONSOLE BOX (w/o Wireless Charger)

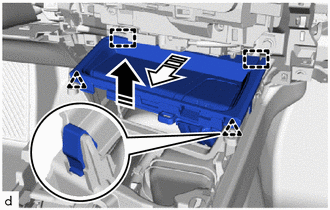

    1. Disengage the clips and guides to remove the upper console box as shown in the illustration.
      GTY828613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disconnect the connector.
      GTY833963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

    Refer to PROCEDURE - Step 2

  24. REMOVE FRONT NO. 1 CONSOLE BOX INSERT
    1. Disengage the clips and guide to remove the No. 1 front console box insert as shown in the illustration.
      GTY789798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  25. REMOVE FRONT NO. 2 CONSOLE BOX INSERT
    1. Disengage the clips and guide to remove the No. 2 front console box insert as shown in the illustration.
      GTY791737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  26. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY
    1. Using a moulding remover A, disengage the clips to remove the rear console end panel sub-assembly as shown in the illustration.
      GTY834945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector.
      GTY805683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.
      GTY805666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Remove the 4 bolts.
      GTY833958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts.
      GTY805664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a clip remover, disengage the wire harness clamp.
    4. Disconnect the 2 connectors.
      GTY806918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the guides to remove the rear console box assembly as shown in the illustration.
      GTY801239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
