Removal [10/2019 - 07/2022]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [10/2019 - 07/2022]

  2. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to REMOVAL [10/2019 - 07/2022]

  3. REMOVE TELEPHONE ECU WIRE
    1. w/ Navigation System:

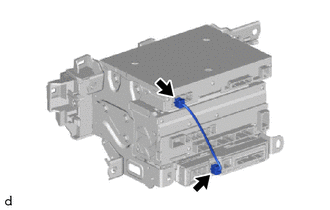

      GTY971486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors to remove the telephone ECU wire.
    2. w/o Navigation System:

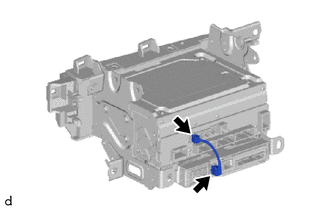

      GTY971487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 connectors to remove the telephone ECU wire.
  4. REMOVE DCM (TELEMATICS TRANSCEIVER)

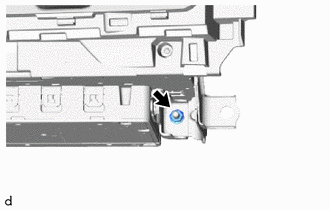

    1. Remove the nut.
      GTY971616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

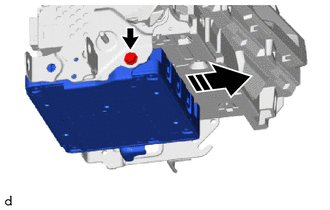

    2. Remove the bolt.
      GTY971444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Remove the DCM (telematics transceiver) as shown in the illustration.
  5. REMOVE NO. 1 TELEPHONE BRACKET
    1. Remove the screw and No. 1 telephone bracket from the DCM (telematics transceiver).
      GTY970843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 TELEPHONE BRACKET

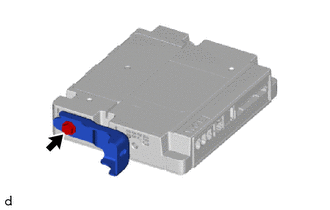

    1. Remove the screw and No. 2 telephone bracket from the DCM (telematics transceiver).
      GTY970847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
