Disassembly [09/2015 - 12/2017]: Procedure

  1. REMOVE BACK WINDOW UPPER PANEL TRIM
    1. Disengage the 4 claws, 5 clips and 4 guides to remove the back window upper trim panel as shown in the illustration.

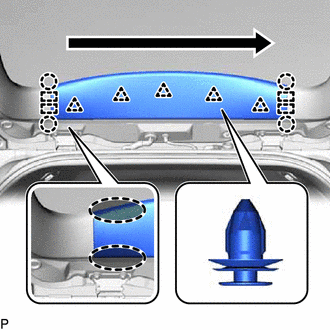

      GTY645231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Order of Removal
  2. REMOVE BACK DOOR TRIM COVER LH
    1. Disengage the 2 clips, 2 claws and 2 guides to remove the back door trim cover LH as shown in the illustration.

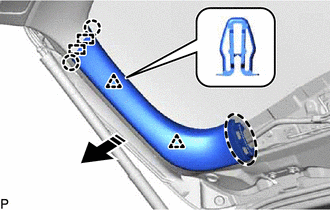

      GTY636339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
  3. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE BACK DOOR LOCK COVER
    1. Disengage the 4 claws to remove the back door lock cover.

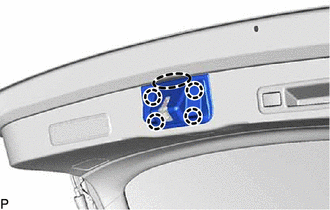

      GTY683629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
  5. REMOVE BACK DOOR TRIM BASE
    1. Using a moulding remover, disengage the 4 claws to remove the back door trim base.

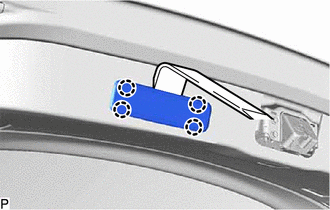

      GTY623207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DOOR PULL HANDLE
    1. Using a moulding remover, disengage the 6 claws.

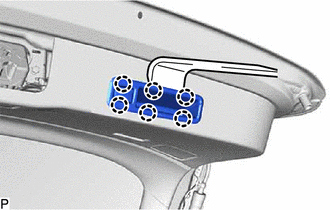

      GTY623218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the door pull handle.
  7. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
    1. Disengage the 16 clips to remove the back door trim panel assembly as shown in the illustration.

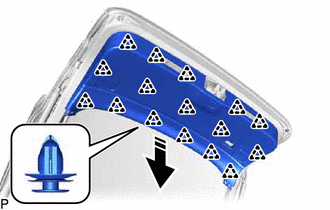

      GTY632359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  9. REMOVE BACK DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE BACK DOOR LOWER STAY REINFORCEMENT LH
    1. Remove the 2 bolts.
      GTY616441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the back door lower stay reinforcement LH.
  11. REMOVE BACK DOOR LOWER STAY REINFORCEMENT RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE BACK DOOR LOWER STOPPER
    1. Remove the bolt.
      GTY616442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the back door lower stopper.

      HINT:

      Use the same procedure for the RH side and LH side.

  13. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

    See step  9

  14. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE SIDE REAR SPOILER PROTECTOR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  16. REMOVE SIDE REAR SPOILER PROTECTOR SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE REAR WIPER MOTOR AND BRACKET ASSEMBLY

    Refer to REMOVAL [09/2015 - 12/2017]

  18. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [09/2015 - 12/2017]

  19. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  2

  20. REMOVE LICENSE PLATE LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  21. REMOVE LICENSE PLATE LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE MULTIPLEX NETWORK DOOR ECU

    See step  9

  23. REMOVE POWER BACK DOOR WARNING BUZZER

    See step  9

  24. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  25. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  26. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 3

  27. REMOVE BACK DOOR LOWER STOPPER CUSHION
    1. Disengage the 2 claws to remove the back door lower stopper cushion.
      GTY616443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  28. REMOVE BACK DOOR DUST PROOF SEAL
    1. Disengage the 2 claws and guide to remove the back door dust proof seal.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY673353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY LH
    NOTE:

    Do not apply any horizontal load to the power back door unit set assembly in order to prevent the piston rod from deforming.

    1. Disconnect the connector.
      GTY656341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet
    2. Disengage the grommet.
    3. Remove the 4 bolts and power back door unit set assembly.
      GTY623275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Remove the power back door unit set assembly while supporting the back door by hand.

  30. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.
