Removal [09/2015 - 12/2017]: Procedure

  1. REMOVE BACK WINDOW UPPER PANEL TRIM

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR TRIM COVER LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 4

  5. REMOVE BACK DOOR TRIM BASE

    Refer to PROCEDURE - Step 5

  6. REMOVE DOOR PULL HANDLE

    Refer to PROCEDURE - Step 6

  7. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. REMOVE BACK DOOR LOCK ASSEMBLY
    1. Disconnect the connector.

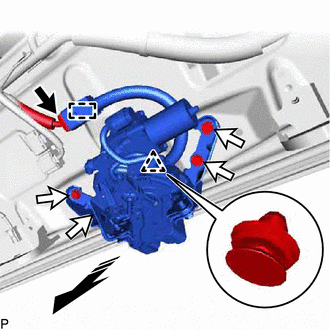

      GTY642893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the clamp.
    3. Remove the 4 bolts.
    4. Disengage the clip to remove the back door lock assembly as shown in the illustration.
