Removal [09/2015 - 12/2017]: Procedure

  1. REMOVE BACK WINDOW UPPER PANEL TRIM

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SPOILER SUB-ASSEMBLY

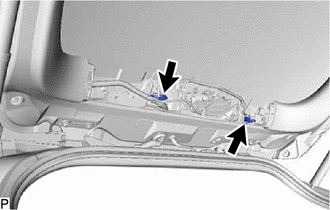

    1. Disconnect the 2 connectors.
      GTY618427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

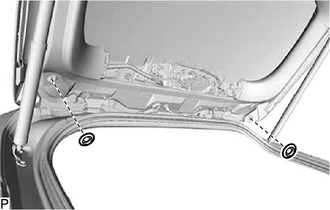

    2. Remove the 2 hole plugs.
      GTY658829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and 3 nuts.
      GTY793213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

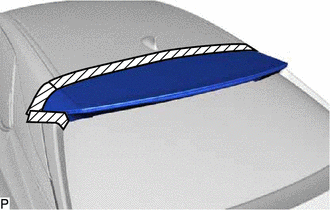

    4. Apply protective tape around the rear spoiler sub-assembly.
      GTY639351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

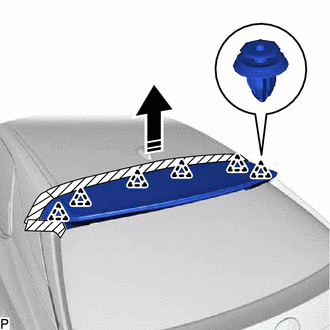

    5. Disengage the 6 clips as shown in the illustration to remove the rear spoiler sub-assembly.
      GTY679889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE SIDE REAR SPOILER PROTECTOR SUB-ASSEMBLY LH

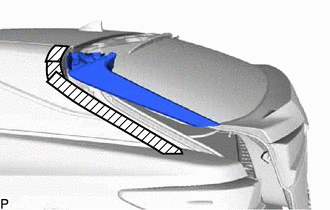

    1. Apply protective tape around the side rear spoiler protector sub-assembly LH.
      GTY652973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

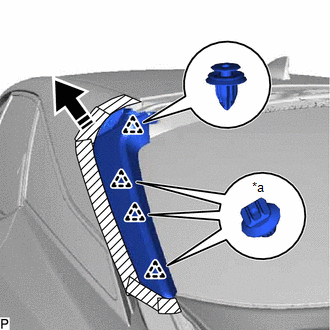

    2. Disengage the 4 clips as shown in the illustration to remove the side rear spoiler protector sub-assembly LH.
      GTY674653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip <A>
      Remove in this Direction
    3. Remove the 3 clips <A>.
  4. REMOVE SIDE REAR SPOILER PROTECTOR SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.
