Removal [09/2015 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [09/2015 - 12/2017] Refer to REMOVAL [12/2017 - 08/2019] Refer to REMOVAL [08/2019 - ]

  2. REMOVE LICENSE PLATE LIGHT ASSEMBLY

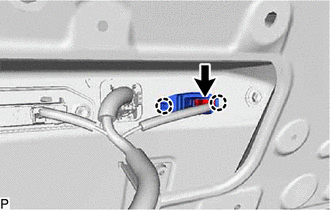

    1. Disconnect the connector.
      GTY646199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the license plate light assembly.
