  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [09/2015 - 12/2017] Refer to REMOVAL [12/2017 - 08/2019]

  2. REMOVE REAR LIGHT ASSEMBLY

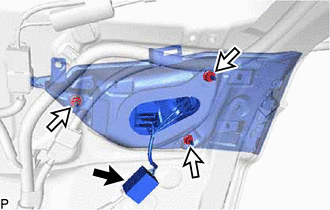

    1. Disconnect the connector.
      GTY646220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and rear light assembly.

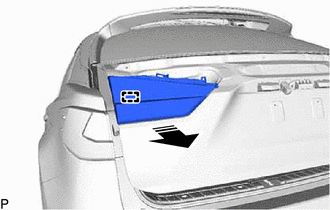

    3. Disengage the pin to remove the rear light assembly as shown in the illustration.
      GTY614065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
