Removal [12/2017 - ]: Procedure

  1. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [12/2017 - ]

  2. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]

  3. REMOVE REAR DOOR INSIDE SCUFF PLATE

    Refer to PROCEDURE - Step 13 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 13 [08/2019 - ]

  4. REMOVE REAR SEAT OUTER TRACK BRACKET COVER LH (for LH Side)

    for 60/40 Split Seat Type:

    Refer to PROCEDURE - Step 6 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

    for Captain Seat Type:

    Refer to PROCEDURE - Step 6 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  5. REMOVE REAR SEAT OUTER TRACK BRACKET COVER RH (for RH Side)

    for 60/40 Split Seat Type:

    Refer to PROCEDURE - Step 7 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

    for Captain Seat Type:

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 6 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  6. REMOVE FRONT DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 28 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 28 [08/2019 - ]

  7. REMOVE REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 29 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 29 [08/2019 - ]

  8. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)

    Refer to PROCEDURE - Step 26 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 26 [08/2019 - ]

  9. REMOVE ROPE HOOK ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 31 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 31 [08/2019 - ]

  10. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 1 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]

  11. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    Refer to PROCEDURE - Step 34 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 34 [08/2019 - ]

  12. REMOVE ROPE HOOK ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 2 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

  14. REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 1

  15. REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (for LH Side)

    Refer to PROCEDURE - Step 1

  16. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 35 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 35 [08/2019 - ]

  17. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 44 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 44 [08/2019 - ]

  18. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY

    See step  20, or see step  20

  19. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 37 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 37 [08/2019 - ]

  20. REMOVE REAR NO. 2 SIDE AIR DUCT (for RH Side)

    Refer to PROCEDURE - Step 22

  21. REMOVE REAR NO. 7 AIR DUCT (for RH Side)

    Refer to PROCEDURE - Step 24

  22. REMOVE REAR NO. 6 AIR DUCT (for RH Side)

    Refer to PROCEDURE - Step 25

  23. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY

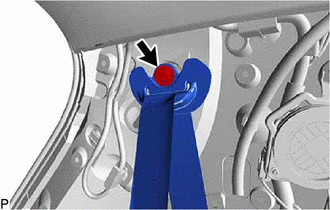

    1. Remove the bolt and disconnect the shoulder anchor of the rear No. 2 seat outer belt assembly.
      GTY837657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

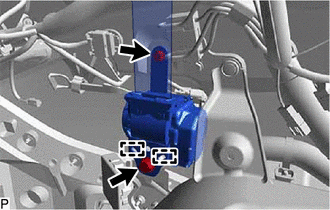

    2. Remove the 2 bolts.
      GTY822427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the rear No. 2 seat outer belt assembly.
