Removal [12/2017 - ]: Procedure

  1. REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR

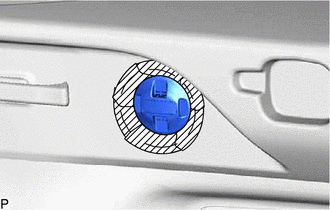

    1. Apply protective tape to the area shown in the illustration.
      GTY803921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

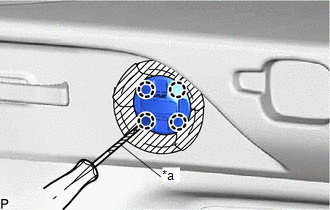

    2. Using a screwdriver, disengage the 4 claws.
      GTY825701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the connector to remove the cooler (No. 2 room temp. sensor) thermistor.
