Removal [12/2017 - ]: Procedure

  1. REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY

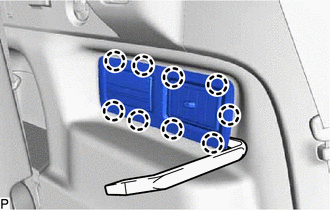

    1. Using a moulding remover, disengage the 9 claws as shown in the illustration.
      GTY823488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

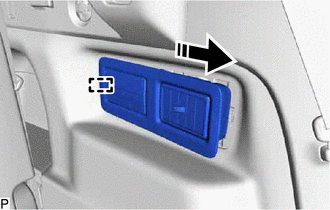

    2. Disengage the guide as shown in the illustration.
      GTY777988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect the connector to remove the No. 2 air conditioning control assembly.
