Removal [12/2017 - 08/2019]: Procedure
- REMOVE TONNEAU COVER ASSEMBLY
- Remove the tonneau cover assembly.
- REMOVE DECK BOARD ASSEMBLY
- Remove the deck board assembly.
- REMOVE REAR NO. 4 FLOOR BOARD
- Remove the rear No. 4 floor board.

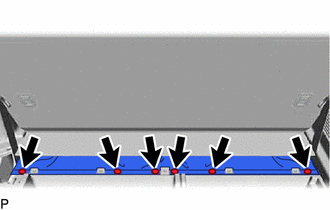

- REMOVE DECK SIDE TRIM BOX LH

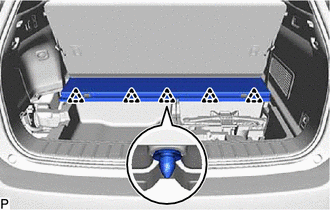

- REMOVE NO. 1 DECK BOARD
- DISCONNECT REAR NO. 2 SEAT ASSEMBLY

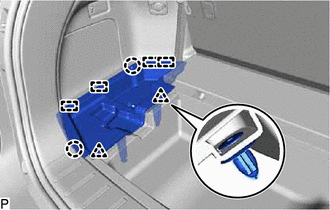

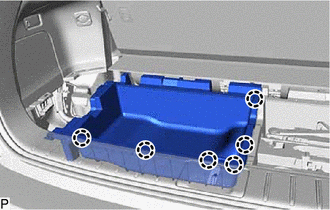

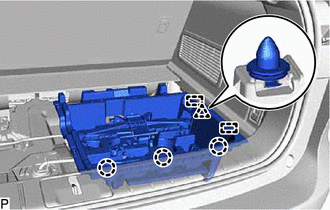

- REMOVE REAR DECK FLOOR BOX

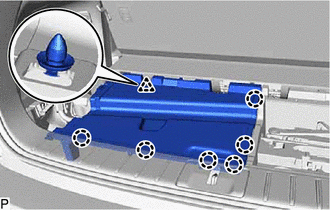

- REMOVE FRONT DECK FLOOR BOX

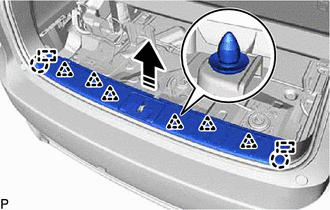

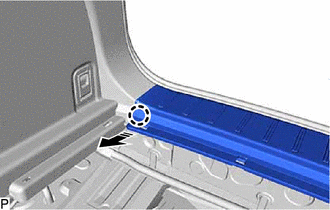

- REMOVE REAR FLOOR FINISH PLATE
- REMOVE FRONT DOOR SCUFF PLATE LH
See step 9
- REMOVE FRONT PILLAR GARNISH LH
See step 10
- REMOVE REAR DOOR SCUFF PLATE LH
- REMOVE REAR DOOR INSIDE SCUFF PLATE LH
- REMOVE LOWER CENTER PILLAR GARNISH LH
See step 12
- DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 8

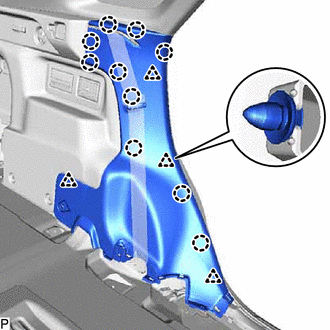

- REMOVE CENTER PILLAR GARNISH ASSEMBLY LH
See step 14
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR DOOR INSIDE SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE LOWER CENTER PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.
- DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE CENTER PILLAR GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR NO. 1 SEAT ASSEMBLY (for Captain Seat Type)
Refer to REMOVAL [12/2017 - 08/2019]
- REMOVE REAR NO. 1 SEAT ASSEMBLY (for 60/40 Split Seat Type LH Side)
Refer to REMOVAL [12/2017 - 08/2019]
- REMOVE REAR NO. 1 SEAT ASSEMBLY (for 60/40 Split Seat Type RH Side)
Refer to REMOVAL [12/2017 - 08/2019]
- REMOVE REAR NO. 2 SEAT ASSEMBLY
Refer to REMOVAL [12/2017 - ]

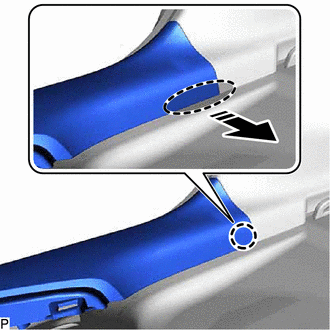

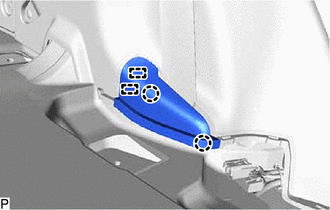

- REMOVE FRONT DECK SIDE TRIM COVER LH

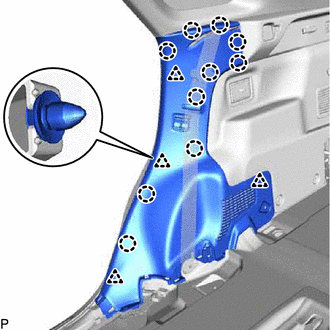

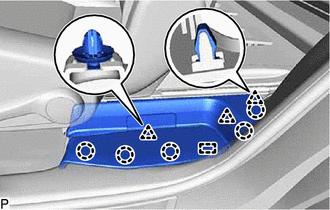

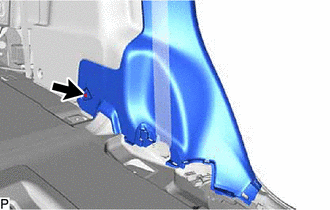

- REMOVE REAR SEAT SIDE GARNISH LH
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
See step 26

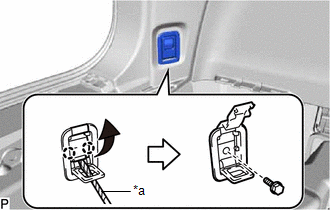

- REMOVE ROPE HOOK ASSEMBLY (for LH Side)
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 1
- REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR
Refer to PROCEDURE - Step 1

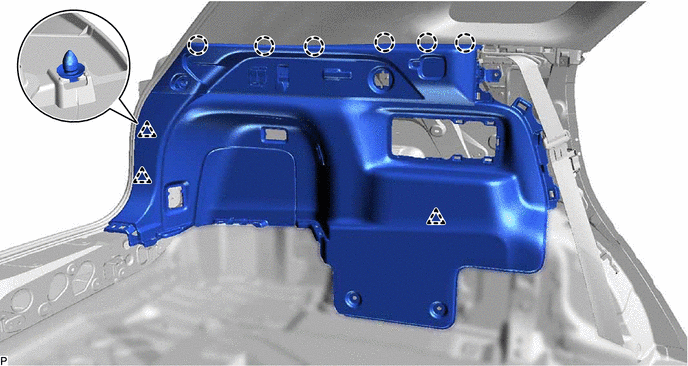

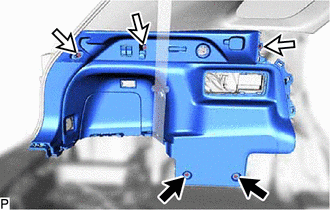

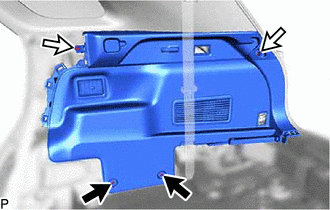

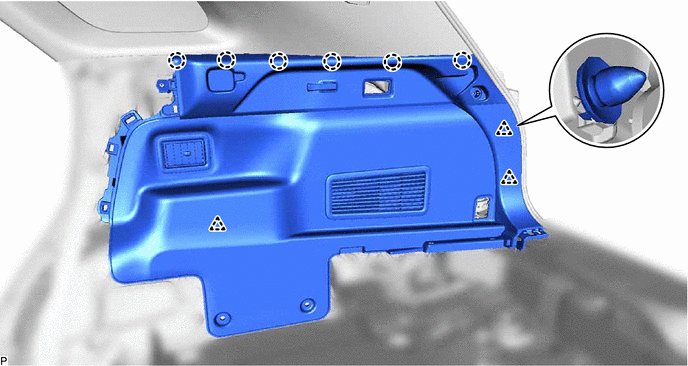

- REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
- DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 18

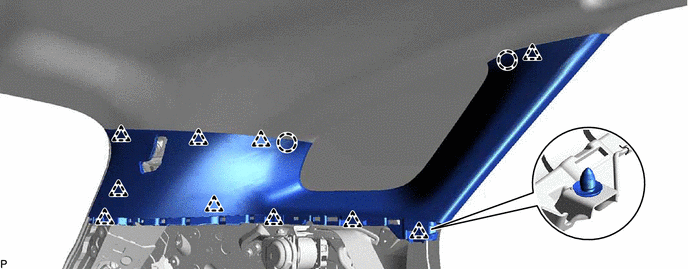

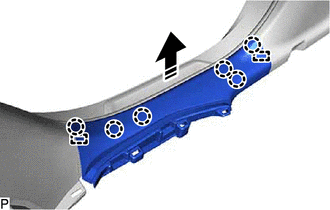

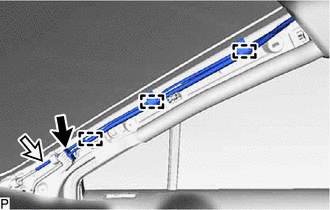

- REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

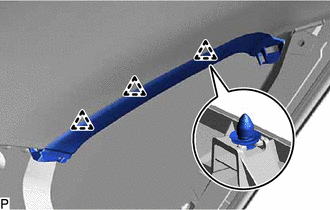

- REMOVE REAR ROOF SIDE RAIL GARNISH ASSEMBLY LH
- REMOVE FRONT DECK SIDE TRIM COVER RH
HINT:
Use the same procedure as for the LH side.

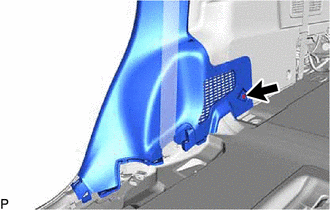

- REMOVE REAR SEAT SIDE GARNISH RH
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)
See step 34
- REMOVE ROPE HOOK ASSEMBLY (for RH Side)
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)
Refer to PROCEDURE - Step 2
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
- DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR ROOF SIDE RAIL GARNISH ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE MAP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE SPOT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE RAIN SENSOR COVER
Refer to PROCEDURE - Step 1
- REMOVE RAIN SENSOR
Refer to PROCEDURE - Step 2
- REMOVE NO. 2 FORWARD RECOGNITION COVER
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 FORWARD RECOGNITION COVER
Refer to PROCEDURE - Step 2
- REMOVE ASSIST GRIP SUB-ASSEMBLY
HINT:
Use the same procedure for all assist grip sub-assemblies.
- Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
*a Cutout - SST: 09813-00010
NOTE:To prevent the assist grip sub-assembly from being damaged, make sure to insert SST straight into the cutout.
HINT:
Use the same procedure for the LH side and RH side.
- Pull SST as shown in the illustration to disengage the claw.NOTE:
To prevent the assist grip sub-assembly from being damaged, make sure to only pull SST as shown in the illustration.
*a 30 to 45° Remove in this Direction HINT:
- Use the same procedure for the claw on the other side of the assist grip cover LH.
- Use the same procedure for the LH side and RH side.
- Remove the assist grip cover LH.
HINT:
Use the same procedure for the LH side and RH side.
- Disengage the 2 clips as shown in the illustration to remove the assist grip sub-assembly.
Remove in this Direction - Remove the 2 clips from the vehicle body.
- Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
- REMOVE REAR ASSIST GRIP ASSEMBLY LH
HINT:
Use the same procedure as for the assist grip sub-assembly.
- REMOVE REAR ASSIST GRIP ASSEMBLY RH
HINT:
Use the same procedure as for the assist grip sub-assembly.
- REMOVE VISOR BRACKET COVER LH
HINT:
Use the same procedure as for the visor bracket cover.
See step 50
- REMOVE VISOR ASSEMBLY LH
See step 51
- REMOVE VISOR HOLDER LH
HINT:
Use the same procedure as for the visor holder.
See step 52
- REMOVE VISOR BRACKET COVER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE VISOR ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE VISOR HOLDER RH
HINT:
Use the same procedure as for the LH side.

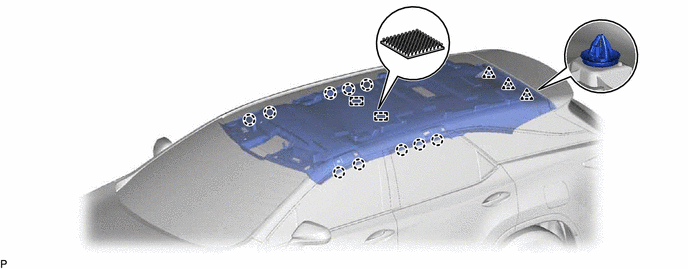

- REMOVE ROOF HEADLINING ASSEMBLY
- for Windshield Glass Side:

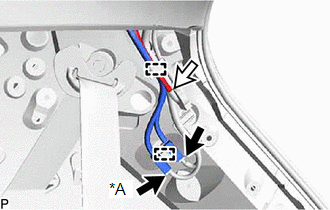

- Disconnect each connector.
- for Front Pillar LH Side:
- for Front Pillar RH Side:
- for Rear Pillar RH Side:
- for Standard Roof:
- for Sliding Roof:

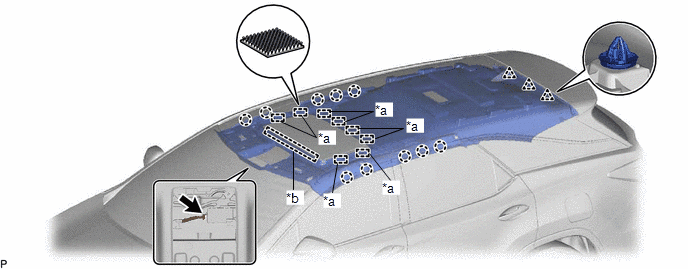

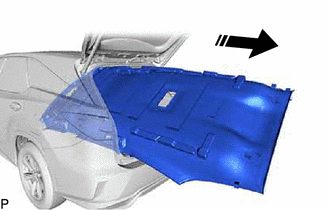

- Remove the roof headlining assembly from the vehicle through the back door as shown in the illustration.NOTE:
Do not damage the roof headlining assembly or vehicle interior.
Remove in this Direction
- for Windshield Glass Side:
