Removal [10/2017 - ]: Procedure

  1. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 3 [10/2017 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  2. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 4 [10/2017 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]

  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 14 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 14 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 14 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 21 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 21 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 22 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 22 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 22 [10/2023 - ]

  5. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

    Refer to PROCEDURE - Step 5 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 5 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 5 [10/2020 - ]

  6. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
    1. Remove the 3 screws.
      GTY833488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

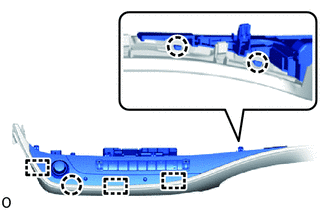

    2. Using a thin-bladed screwdriver, detach the claw and guide and remove the integration control and panel assembly.
      GTY803542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
