Removal [10/2022 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [10/2022 - 10/2023] , or refer to PRECAUTION [10/2023 - ]

  2. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  3. REMOVE INSTRUMENT SIDE PANEL LH
    1. Insert moulding remover B as shown in the illustration and push in the direction indicated by the arrow to slightly pull the bottom part of the instrument side panel LH away from the vehicle.
      GTY796473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Place your hand at the position shown in the illustration, detach the clip in the removal order and remove the instrument side panel LH.
      GTY797035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  4. REMOVE INSTRUMENT SIDE PANEL RH
    1. Insert moulding remover B as shown in the illustration and push in the direction indicated by the arrow to slightly pull the bottom part of the instrument side panel RH away from the vehicle.
      GTY833389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Place your hand at the position shown in the illustration, detach the clip in the removal order and remove the instrument side panel RH.
      GTY810526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  5. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

  6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 22 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 22 [10/2023 - ]

  7. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

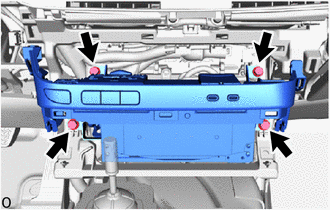

    1. Remove the 4 bolts.
      GTY1134293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the radio receiver assembly with bracket out toward the rear of the vehicle and detach the clip.
      GTY1137529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector and remove the radio receiver assembly with bracket.
  8. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

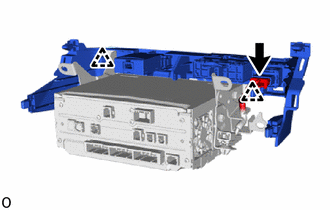

    1. Disconnect the connector.
      GTY1136124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and remove the lower No. 2 instrument panel finish panel.
  9. REMOVE SWITCH WIRE

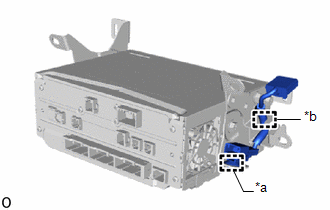

    1. Detach the clamp and guide, and remove the switch wire.
      GTY1137163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
  10. REMOVE NO. 3 RADIO BRACKET
    1. Remove the 3 screws and No. 3 radio bracket.
      GTY1134294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 4 RADIO BRACKET

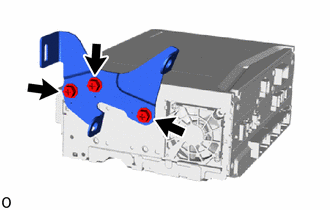

    1. Remove the 3 screws and No. 4 radio bracket.
      GTY1136128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE RADIO RECEIVER ASSEMBLY
