Removal [09/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE INSTRUMENT PANEL FINISH PLATE

    Refer to PROCEDURE - Step 16 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 16 [05/2019 - ]

  2. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 4 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]

  3. REMOVE CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 5 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 5 [05/2019 - ]

  4. REMOVE UPPER REAR CONSOLE PANEL

    Refer to PROCEDURE - Step 6 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]

  5. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 8 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 8 [05/2019 - ]

  6. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 7 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - ]

  7. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 14 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 14 [05/2019 - ]

  8. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 9 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 9 [05/2019 - ]

  9. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 10 [05/2019 - ]

  10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 11 [05/2019 - ]

  11. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 12 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 12 [05/2019 - ]

  12. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 13 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 13 [05/2019 - ]

  13. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 15 [05/2019 - ]

  14. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 18 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 18 [05/2019 - ]

  15. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  16. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  17. REMOVE SHIFT POSITION INDICATOR

    See step  3

  18. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (PATTERN SELECT SWITCH)

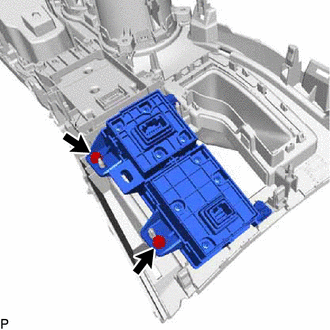

    1. Remove the 2 screws and integration control and panel assembly (pattern select switch) to the rear upper console panel sub-assembly.
      GTY502730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
