Removal [05/2019 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precoution thoroughly before serving.

    Refer to PRECAUTION [05/2019 - ]

    NOTE:

    After turning the engine switch off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to PRECAUTION [05/2019 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason. it may cause a serious accident.
  3. REMOVE INSTRUMENT PANEL FINISH PLATE

    Refer to PROCEDURE - Step 16

  4. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET
    1. for 8 inch:
      GTY777876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts.
      2. Move the multi-display assembly with bracket as indicated by the arrow shown in the illustration to detach the 2 clips.
        GTY777880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Detach the 3 guides.
        GTY813382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Disconnect the 3 connector.
        GTY777884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Detach the clamp and remove the multi-display assembly with bracket.
    2. for 10.3 inch:
      GTY827888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts.
      2. Move the multi-display assembly with bracket as indicated by the arrow shown in the illustration to detach the 2 clips.

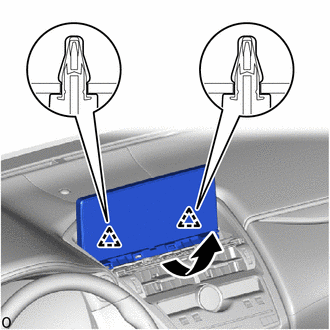

        GTY777877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Detach the 3 guides.
        GTY813383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Disconnect the 3 connector.
        GTY827887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Detach the clamp and remove the multi-display assembly with bracket.
  5. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A
    1. for 8 inch:
      1. Remove the 2 screws.
        GTY777885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 screws and multi-display controller bracket A.
        GTY827886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for 10.3 inch:
      1. Remove the 2 screws.
        GTY775193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 screws and multi-display controller bracket A.
        GTY775194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE MULTI-DISPLAY ASSEMBLY
