Removal [09/2017 - ]: Procedure

  1. REMOVE CONSOLE ARMREST ASSEMBLY

    See step  5 [09/2017 - 05/2019], or see step  5 [05/2019 - ]

  2. REMOVE UPPER REAR CONSOLE PANEL

    See step  6 [09/2017 - 05/2019], or see step  6 [05/2019 - ]

  3. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

    See step  7 [09/2017 - 05/2019], or see step  7 [05/2019 - ]

  4. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

    See step  8 [09/2017 - 05/2019], or see step  8 [05/2019 - ]

  5. REMOVE INSTRUMENT SIDE PANEL LH

    See step  9 [09/2017 - 05/2019], or see step  9 [05/2019 - ]

  6. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    See step  10 [09/2017 - 05/2019], or see step  10 [05/2019 - ]

  7. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    See step  11 [09/2017 - 05/2019], or see step  11 [05/2019 - ]

  8. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    See step  12 [09/2017 - 05/2019], or see step  12 [05/2019 - ]

  9. REMOVE NO. 1 SWITCH HOLE BASE

    See step  13 [09/2017 - 05/2019], or see step  13 [05/2019 - ]

  10. REMOVE INSTRUMENT SIDE PANEL RH

    See step  14 [09/2017 - 05/2019], or see step  14 [05/2019 - ]

  11. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    See step  15 [09/2017 - 05/2019], or see step  15 [05/2019 - ]

  12. REMOVE INSTRUMENT PANEL FINISH PLATE

    See step  16 [09/2017 - 05/2019], or see step  16 [05/2019 - ]

  13. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 4 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]

  14. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    See step  18 [09/2017 - 05/2019], or see step  18 [05/2019 - ]

  15. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Hold the shift lever knob sub-assembly and shifting hole cover sub-assembly, and then pull down the shifting hole cover sub-assembly to detach the 2 claws.

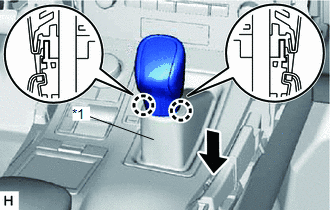

      GTY512840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Shifting Hole Cover Sub-assembly

      HINT:

      Do not rotate the shift lever knob sub-assembly. Pull down the shifting hole cover sub-assembly along the knob axis shown in the illustration.

      GTY811571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Downward direction to pull shifting hole cover sub-assembly
      *b Knob Axis
      *c Separation
    2. Twist the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.

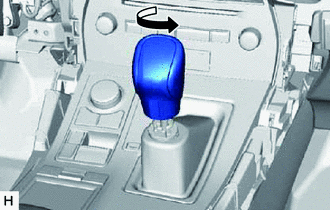

      GTY498802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY
    1. Place your hand as shown in the illustration and detach the 4 claws and 8 clips.

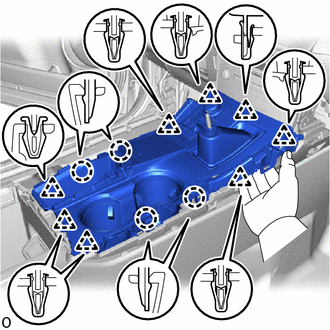

      GTY832346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors and detach the clamp and remove the upper rear console panel sub-assembly.
  17. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACE COVER LH
    1. Put protective tape around the inner No. 1 instrument panel brace cover LH.

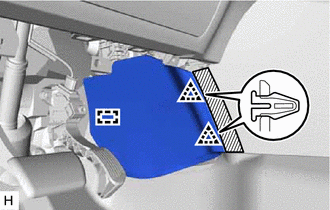

      GTY805577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Detach the 2 clips and guide and remove the inner No. 1 instrument panel brace cover LH.
  18. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACE COVER RH
    1. Put protective tape around the inner No. 1 instrument panel brace cover RH.

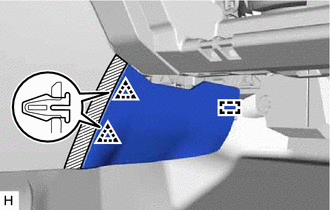

      GTY821465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Detach the 2 clips and guide and remove the inner No. 1 instrument panel brace cover RH.
  19. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY
    1. Put protective tape around the rear console end panel sub-assembly.

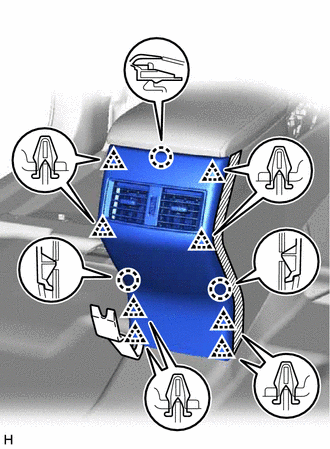

      GTY823178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using molding remover B, detach the 8 clips and 3 claws.
    3. Disconnect the connectors and remove the rear console end panel sub-assembly.
  20. REMOVE CONSOLE BOX POCKET (w/o Wireless Charger)
    1. Remove the console box pocket.

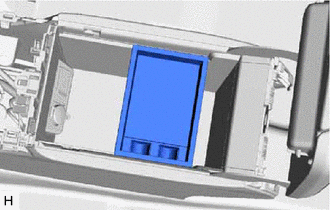

      GTY508632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

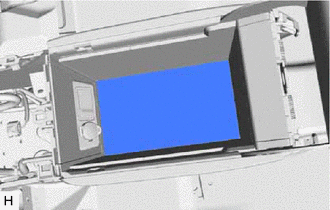

  21. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.
      GTY508630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE CONSOLE BOX ASSEMBLY
    1. Disconnect the connectors and detach the clamps.
    2. Remove the 8 bolts.
    3. Detach the 4 guides and remove the console box assembly.

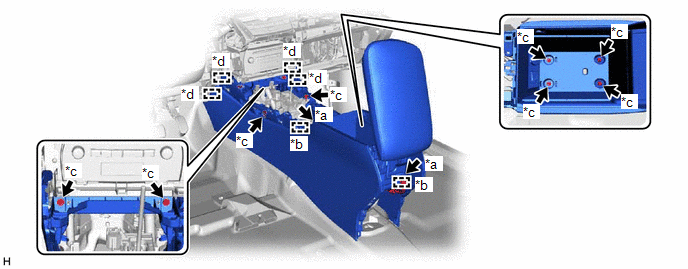

      GTY825427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector *b Clamp
      *c Bolt *d Guide
