Installation [09/2015 - ]: Procedure

  1. INSTALL TIMING CHAIN COVER ASSEMBLY
    1. Apply a light coat of engine oil to the 2 new oil pump gaskets and oil hole cover gasket.
    2. Install the 2 oil pump gaskets and oil hole cover gasket to the stiffening crankcase assembly.
    3. Align the positions of the drive rotor spline and crankshaft timing sprocket as shown in the illustration.

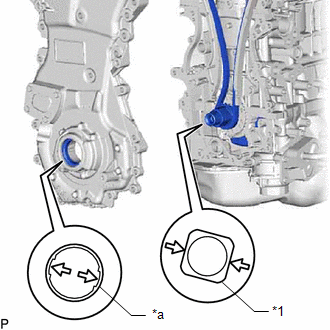

      GTY520092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Crankshaft Timing Sprocket
      *a Drive Rotor Spline
    4. Apply a coating of seal packing to the timing chain cover assembly at the points shown in the illustration.

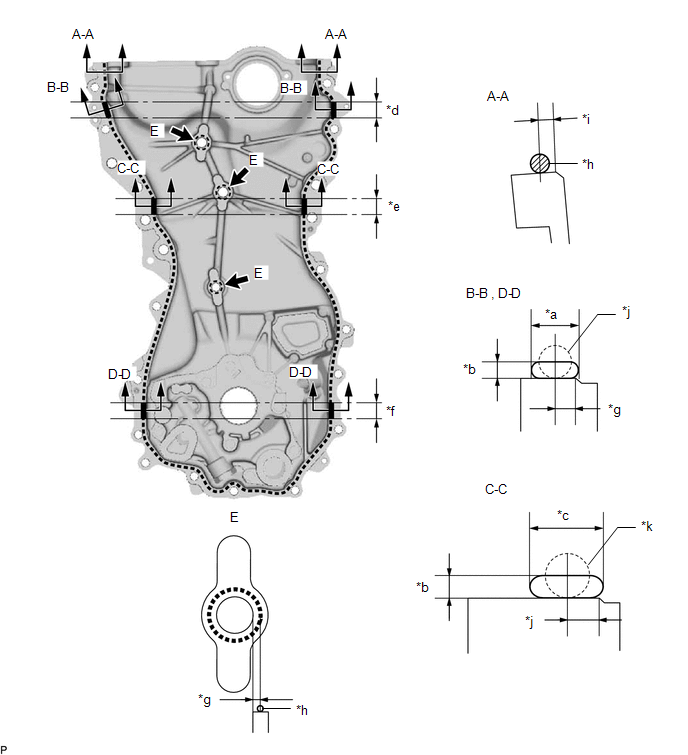

      GTY514967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 7.0 mm (0.276 in.) or more *b 3.0 mm (0.118 in.) or more
      *c 13.0 mm (0.512 in.) or more *d 28 mm (1.10 in.)
      *e 25 mm (0.984 in.) *f 26 mm (1.02 in.)
      *g 3.0 mm (0.118 in.) *h 2.5 to 3.5 mm (0.0984 to 0.138 in.)
      *i 2.5 mm (0.0984 in.) *j 5.0 mm (0.197 in.)
      *k 7.0 mm (0.276 in.) - -

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent.

      Seal Packing Application Specification

      Line Type and Area Seal Packing Diameter Application Area Seal Packing Application Length
      Coating Width
      Dashed Line 2.5 to 3.5 mm (0.0984 to 0.138 in.) 2.5 mm (0.0984 in.) -
      -
      A - A 2.5 to 3.5 mm (0.0984 to 0.138 in.) 2.5 mm (0.0984 in.) -
      -
      B - B 5.0 mm (0.197 in.) 3.0 mm (0.118 in.) 28 mm (1.10 in.)
      Width 7.0 mm (0.276 in.) or more
      Thickness 3.0 mm (0.118 in.) or more
      C - C 7.0 mm (0.276 in.) 5.0 mm (0.197 in.) 25 mm (0.984 in.)
      Width 13 mm (0.512 in.) or more
      Thickness 3.0 mm (0.118 in.) or more
      D - D 5.0 mm (0.197 in.) 3.0 mm (0.118 in.) 26 mm (1.02 in.)
      Width 7.0 mm (0.276 in.) or more
      Thickness 3.0 mm (0.118 in.) or more
      E 2.5 to 3.5 mm (0.0984 to 0.138 in.) 3.0 mm (0.118 in.) -
      -
      NOTE:
      • Using non-residue solvent, clean and remove any oil from the installation surface.
      • Install the part within 3 minutes and tighten the bolts within 10 minutes after applying seal packing.
      • Do not add engine oil for at least 2 hours after installation.
      • Do not start the engine within 2 hours after installation.
    5. Temporarily install the timing chain cover assembly with the 2 nuts and 19 bolts.
      Fig 1: Timing Chain Cover Assembly With The 2 Nuts And 19 Bolts

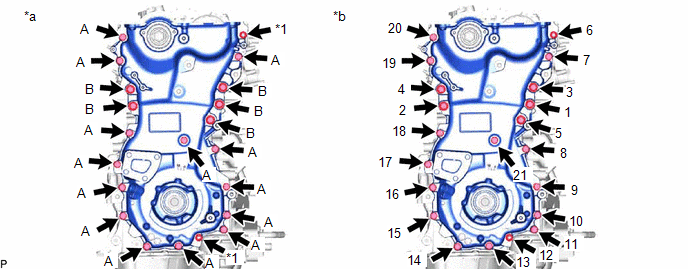

      GTY504847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Nut - -
      *a Types of nut and bolt *b Tightening Order

      Bolt Length

      Item Length Thread Diameter
      Bolt A 30 mm (1.18 in.) 8 mm (0.315 in.)
      Bolt B 35 mm (1.38 in.) 10 mm (0.394 in.)
      NOTE:

      Do not apply oil to bolts. Clean off if any oil is applied to bolts.

      When tightening the 16th bolt shown in the illustration, be careful not to damage the installation surface of the crankshaft position sensor.

    6. Tighten the 19 bolts and 2 nuts in several steps, in the sequence shown in the illustration.

      Bolts A, nut

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Bolt B

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

  2. INSTALL TRANSVERSE ENGINE MOUNTING BRACKET
    1. Temporarily install the transverse engine mounting bracket with the 4 bolts.
      Fig 2: Transverse Engine Mounting Bracket With The 4 Bolts Tightening Sequence

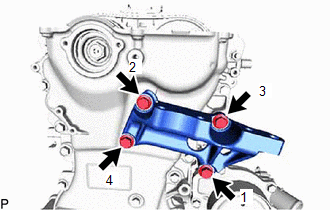

      GTY506847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 4 bolts in the order shown in the illustration.

      Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

      NOTE:

      After applying seal packing to the timing chain cover assembly, install the transverse engine mounting bracket within 10 minutes.

  3. INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  4. INSTALL CRANKSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  5. INSTALL CRANKSHAFT PULLEY ASSEMBLY

    Refer to PROCEDURE - Step 47 [09/2015 - ]

  6. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY
    1. Temporarily install the V-ribbed belt tensioner assembly with the 2 bolts.

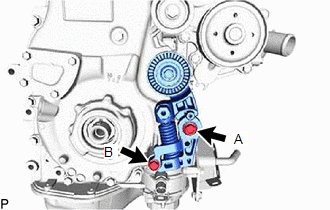

      GTY505220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the bolt A.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    3. Tighten the bolt B.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  7. INSTALL IDLER PULLEY SUB-ASSEMBLY
    1. Install the idler pulley sub-assembly to the timing chain cover assembly with the bolt.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  8. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  9. INSTALL FAN AND GENERATOR V BELT

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  10. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY
    NOTE:

    Be sure not to disconnect the PCV hose or the No. 4 PCV hose from the cylinder head cover sub-assembly.

    1. Apply a light coat of engine oil to 2 new gaskets and 2 camshaft position sensor.
    2. Install the 2 gaskets to the No. 1 camshaft bearing cap and No. 2 camshaft bearing cap.
    3. Install the cylinder head cover gasket and No. 2 cylinder head cover gasket to the cylinder head cover sub-assembly.
    4. Apply seal packing as shown in the illustration.

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Standard seal diameter

      2.0 to 3.0 mm (0.0787 to 0.118 in.)

      NOTE:
      • Remove any oil from the contact surface.
      • Install the cylinder head cover sub-assembly within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
      • Do not add engine oil for at least 2 hours after installation.
      • Do not start the engine within 2 hours after installation.

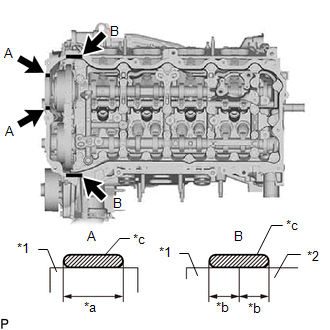

      GTY500893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Timing Chain Cover Assembly
      *2 Camshaft Housing Sub-assembly
      *a Application Width: 8.0 mm (0.315 in.)
      *b Application Width: 5.0 mm (0.197 in.)
      *c Seal Diameter: 2.0 to 3.0 mm (0.0787 to 0.118 in.)
      Seal Packing
    5. Temporarily install the 21 bolts and 2 camshaft position sensor to the cylinder head cover sub-assembly.
    6. Tighten the 21 bolts and 2 camshaft position sensor in the order shown in the illustration.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

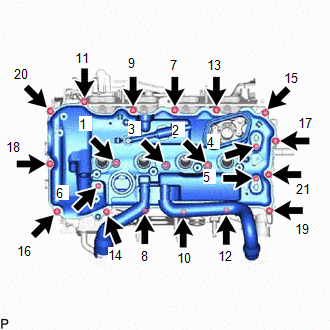

      Fig 3: Camshaft Position Sensor Tightening Sequence
      GTY518667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When reusing the camshaft position sensor, check the O-rings.
      • Make sure that the O-ring is not cracked or jammed when installing it on the cylinder head cover sub-assembly.
      • Replace with a new part if it is dropped or if it receives a strong impact.
  11. CONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 20 [10/2014 - 09/2017] , or refer to PROCEDURE - Step 20 [09/2017 - ]

  12. CONNECT NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY

    Refer to PROCEDURE - Step 14 [09/2015 - ]

  13. CONNECT VACUUM TRANSMITTING HOSE ASSEMBLY

    Refer to PROCEDURE - Step 11 [09/2015 - ]

  14. INSTALL NO. 2 PCV HOSE

    Refer to PROCEDURE - Step 10 [09/2015 - ]

  15. TEMPORARILY INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY (for High Pressure)

    Refer to PROCEDURE - Step 2 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 2 [09/2017 - ]

  16. INSTALL FUEL PUMP ASSEMBLY (for High Pressure)

    Refer to PROCEDURE - Step 3 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 3 [09/2017 - ]

  17. TIGHTEN NO. 1 FUEL PIPE SUB-ASSEMBLY (for High Pressure)

    Refer to PROCEDURE - Step 4 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 4 [09/2017 - ]

  18. INSTALL BRACKET

    Refer to PROCEDURE - Step 6 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 6 [09/2017 - ]

  19. INSTALL FUEL PUMP PROTECTOR

    Refer to PROCEDURE - Step 7 [09/2015 - 09/2017] , or refer to PROCEDURE - Step 7 [09/2017 - ]

  20. INSTALL NO. 2 WATER BY-PASS PIPE

    Refer to PROCEDURE - Step 15 [09/2015 - ]

  21. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2 [10/2014 - ]

  22. INSTALL ENGINE AND TRANSAXLE

    Refer to INSTALLATION [10/2014 - 05/2019] , or refer to INSTALLATION [05/2019 - ]
