Installation [10/2014 - ]: Procedure

1. Apply MP grease to the lip of a new timing gear case or timing chain case oil seal.
   NOTE:

   • Keep the lip free from foreign matter.
   • Do not allow MP grease to contact the dust seal.

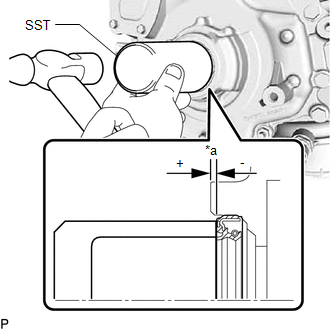

2. Using SST and a hammer, tap in the timing gear case or timing chain case oil seal until the timing chain cover edge.
   • SST: 09636-20010

   Standard depth

   -0.75 to -1.45 mm (-0.0295 to -0.0571 in.) (from edge of the timing chain cover assembly)

   NOTE:

   • Do not tap in the timing gear case or timing chain case oil seal at an angle.
   • Keep the lip free from foreign matter.
   • Wipe off any MP grease from the crankshaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	-0.75 to -1.45 mm (-0.0295 to -0.0571 in.) (from edge of the timing chain cover assembly)

Refer to PROCEDURE - Step 47 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 47 [09/2015 - ]

Refer to PROCEDURE - Step 12 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 12 [05/2019 - ]

Refer to INSTALLATION [10/2014 - ]

Refer to PROCEDURE - Step 6 [10/2014 - 05/2018] , or refer to PROCEDURE - Step 6 [05/2018 - ]

See step  98 [10/2014 - 05/2019], or see step  99 [05/2019 - ]

See step  99 [10/2014 - 05/2019], or see step  100 [05/2019 - ]
