Installation [12/2017 - 10/2020]: Procedure

  1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

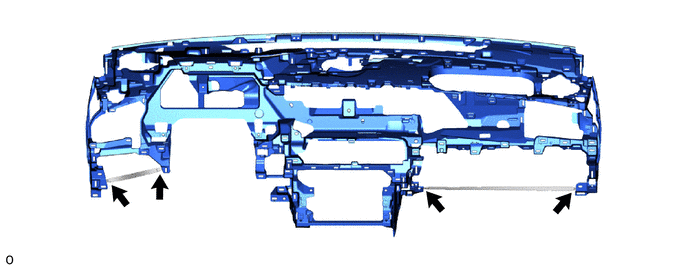

    1. When installing a new instrument panel safety pad assembly:
      1. Immediately before installing the instrument panel safety pad sub-assembly, twist and cut off the portion as shown in the illustration.
        GTY967947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push in the direction indicated by the arrow shown in the illustration and set the instrument panel safety pad sub-assembly into place on the vehicle.
      GTY813417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    3. Lift in the direction indicated by the arrow shown in the illustration and insert the guide.
      NOTE:

      Check the installation condition of the defroster nozzle assembly.

      GTY821493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lift Up Direction Defroster nozzle assembly status

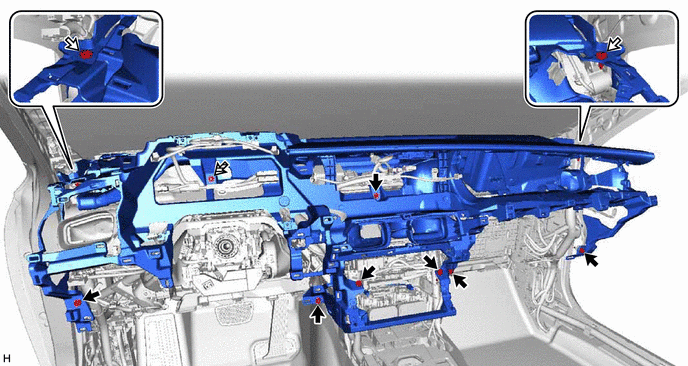

    4. Install the instrument panel safety pad sub-assembly with the nut <F>, 7 bolts <E> and 2 clips <D>.
      GTY777950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <E> Clip <D>
      Nut <F> - -
    5. Attach the claw and install the cooler thermistor (room temperature sensor).
      GTY815823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Attach the clamp and connect the connector.
      GTY815824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Attach the clamp.
      GTY815825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

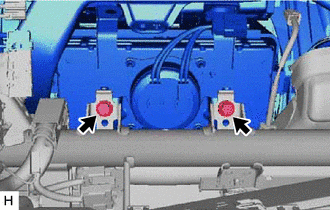

    8. Install the 2 bolts <C>.
      GTY818643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt <C>

      Torque: 20 N.m (04 kgf/cm, 15 ft.lbf)

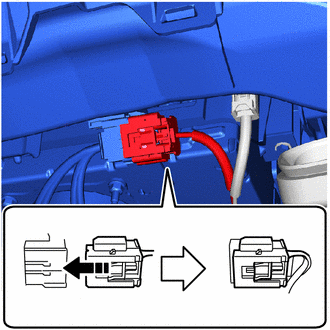

    9. Connect the airbag connector.
      NOTE:

      When handling the airbag connector, take care not to damage the airbag wire harness.

      GTY800332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Slide in this Direction
  2. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL NO. 1 CONSOLE BOX DUCT

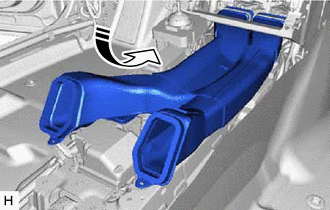

    1. Insert the No. 1 console box duct in the direction indicated by the arrow shown in the illustration.
      GTY782801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the No. 1 console box duct with the 2 clips.
      GTY815918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Connect the connector.
      GTY815905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

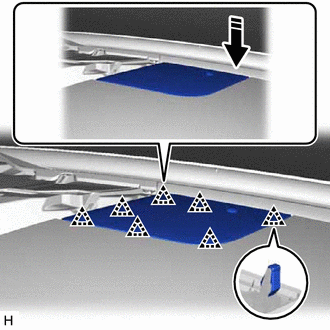

    2. Attach the clip and install the No. 1 instrument panel speaker sub-assembly in the direction indicated by the arrow shown in the illustration.
      GTY830917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  6. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 3

  7. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

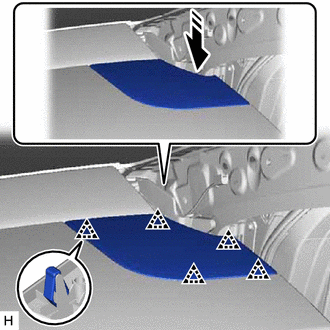

    1. Attach the clip and install the No. 2 instrument panel speaker panel sub-assembly in the direction indicated by the arrow shown in the illustration.
      GTY798108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  8. INSTALL FRONT PILLAR GARNISH LH

    Refer to PROCEDURE - Step 38

  9. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  10. INSTALL NAVIGATION ECU WITH BRACKET

    Refer to PROCEDURE - Step 6

  11. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 5

  12. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

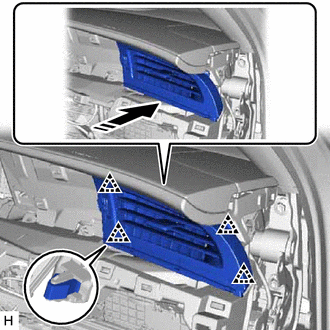

    1. Attach the clip and install the No. 2 instrument panel register assembly in the direction indicated by the arrow shown in the illustration.
      GTY803407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
      GTY815908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL DCM (TELEMATICS TRANSCEIVER)

    Refer to PROCEDURE - Step 1

  14. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Connect the 2 connectors and attach the clamp.
      GTY815909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the clip and install the glove compartment door assembly in the direction indicated by the arrow shown in the illustration.
      GTY812731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the 2 screws <A> or <B>.
      GTY785998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <A> or <B>
    4. Open the glove compartment door assembly.
    5. Install the 2 screws <A> or <B>.
  15. INSTALL GLOVE COMPARTMENT DOOR PAD PLATE

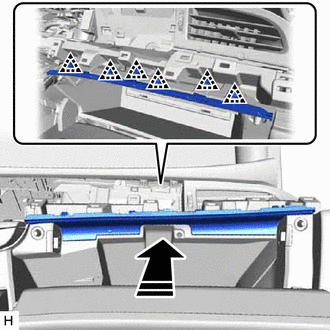

    1. Attach the clip and install glove compartment door pad plate in the direction indicated by the arrow shown in the illustration.
      GTY787456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Close the glove compartment door assembly.
  16. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  17. INSTALL MULTI-DISPLAY ASSEMBLY

    Refer to PROCEDURE - Step 1

  18. INSTALL COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 1

  19. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Connect the connector.
      GTY815897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

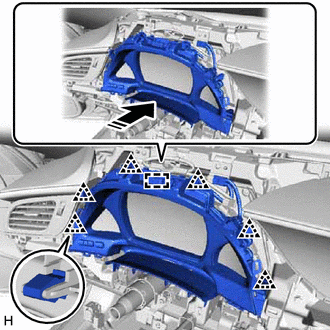

    2. Attach the clip and install the instrument cluster finish panel assembly in the direction indicated by the arrow shown in the illustration.
      GTY794607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. except Sport Package, w/ Illumination:
      1. Connect the connector.
        GTY836229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL STEERING WHEEL SWITCH HOUSING

    Refer to INSTALLATION [12/2017 - 10/2020]

  21. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
    1. Connect the connector.
      GTY815899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

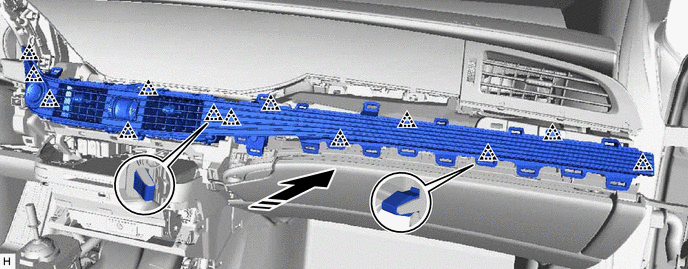

    2. Attach the clip and install the instrument cluster finish panel garnish assembly in the direction indicated by the arrow shown in the illustration.
      GTY799728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
  22. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  23. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
    1. Connect the connector.
    2. Attach the clip in the order shown in the illustration.
      Fig 1: Lower Instrument Panel Finish Panel Assembly Installation Sequence (1 Of 2)
      GTY807242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Attach the clip in the order shown in the illustration and remove the lower instrument panel finish panel assembly.
      Fig 2: Lower Instrument Panel Finish Panel Assembly Installation Sequence (2 Of 2)
      GTY817324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
  24. INSTALL INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY
    1. Insert the guide, attach the clip and install the instrument panel safety pad insert sub-assembly in the direction indicated by the arrow shown in the illustration.
      GTY822910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
  25. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

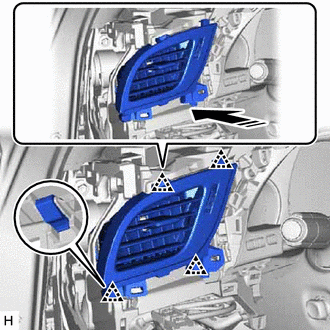

    1. Attach the clip and install the No. 1 instrument panel register assembly in the direction indicated by the arrow shown in the illustration.
      GTY779355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
      GTY815889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

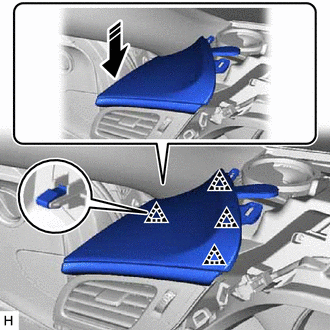

    3. Attach the clip and install the No. 1 instrument panel safety pad sub-assembly (instrument panel safety pad sub-assembly) in the direction indicated by the arrow shown in the illustration.
      GTY786042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the screw.
  26. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING
    1. Attach the clip and install the No. 1 instrument cluster moulding to the No. 1 instrument panel safety pad.
      GTY815890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD
    1. Attach the clip and install the No. 1 instrument panel safety pad together with the No. 1 instrument cluster moulding in the direction indicated by the arrow shown in the illustration.
      GTY811206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  28. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Connect the 2 connectors and attach the clamp.
      GTY815684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Headup Display:
      1. Align the guide in the direction indicated by the arrow shown in the illustration.
        GTY818335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
      2. Attach the clip and install the No. 1 instrument panel safety pad sub-assembly in the direction indicated by the arrow shown in the illustration.
        GTY838623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
    3. w/o Headup Display:
      1. Align the guide and attach the clip in the direction indicated by the arrow in the illustration.
        GTY781017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction

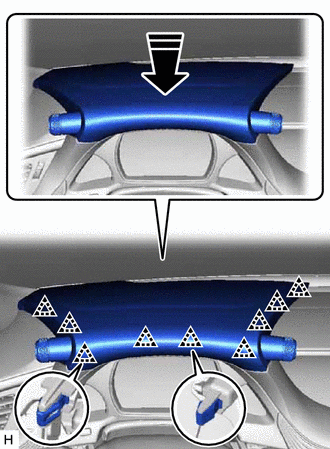

      2. Attach the clip and install the No. 1 instrument panel safety pad sub-assembly in the direction indicated by the arrow shown in the illustration.
        GTY786487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
  29. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  30. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

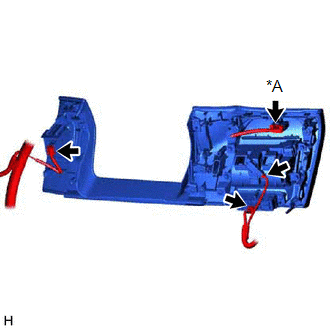

    1. w/ Combination Switch:
      GTY779912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Combination Switch
      1. Connect the connector.
    2. Connect the 3 connectors.

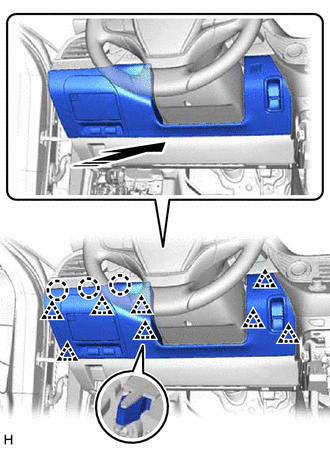

    3. Attach the clip and claw and install the No. 1 lower instrument panel pad sub-assembly in the direction indicated by the arrow shown in the illustration.
      GTY794328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  31. INSTALL COWL SIDE TRIM BOARD LH

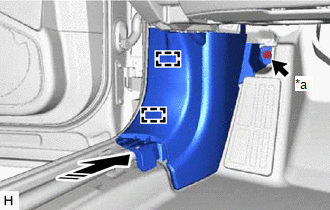

    1. Attach the clamp and install the cowl side trim board LH in the direction indicated by the arrow shown in the illustration.
      GTY965801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cap Nut
      Install in this Direction
    2. Install the cap nut.
  32. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connector.
      GTY815688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the guide in the direction indicated by the arrow shown in the illustration.
      GTY965818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Lift up in the direction indicated by the arrow shown in the illustration to attach the clip and install the No. 1 instrument panel under cover sub-assembly.
      GTY965807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. GTY965812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <A> or <B>

      Install the 2 screws <A> or <B>.

  33. INSTALL INSTRUMENT SIDE PANEL LH
    1. Attach the clip and install the instrument side panel LH in the direction indicated by the arrow shown in the illustration.
      GTY802571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  34. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 42

  35. INSTALL COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure described for the LH side.

  36. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connector.
      GTY815902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the guide in the direction indicated by the arrow shown in the illustration.
      GTY792411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

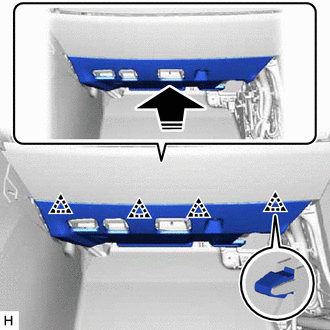

    3. Lift up in the direction indicated by the arrow shown in the illustration to attach the clip and install the No. 2 instrument panel under cover sub-assembly.
      GTY798582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  37. INSTALL INSTRUMENT SIDE PANEL RH

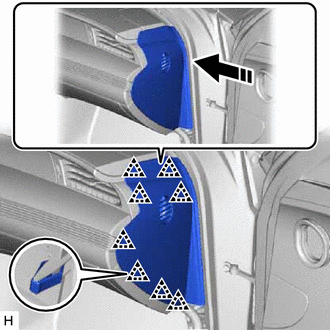

    1. Attach the clip and install the instrument side panel RH in the direction indicated by the arrow shown in the illustration.
      GTY782866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  38. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

    See step  34

  39. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [12/2017 - 10/2020]

  40. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]

  41. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  42. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

  43. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [12/2017 - 11/2021]

  44. PERFORM SYSTEM CALIBRATION

    Refer to CAUTION / NOTICE / HINT , or refer to REMOVAL [09/2018 - 10/2020]
