Installation [12/2017 - ]: Procedure

INSTALL FRONT NO. 3 SPEAKER ASSEMBLY (for Center)

NOTE:

Do not touch the cone part of the front No. 3 speaker assembly.

Tighten the 2 screws in the order shown in the illustration to install the front No. 3 speaker assembly.

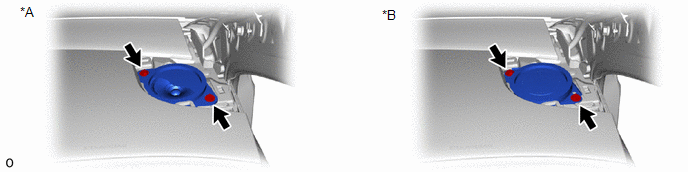

Fig 1: Front No. 3 Speaker Assembly (For Center) Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 12 Speakers

for 24 Speakers

INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Center)
Refer to PROCEDURE - Step 5 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 5 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 5 [10/2023 - ]

INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for Side)

NOTE:

Do not touch the cone part of the front No. 2 speaker assembly.

for LH Side:

Tighten the 2 screws in the order shown in the illustration to install the front No. 2 speaker assembly.

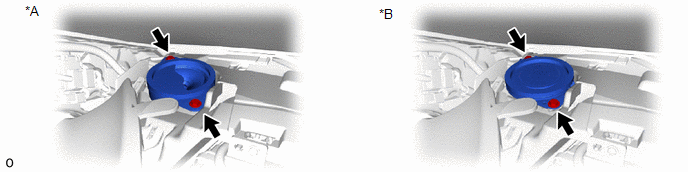

Fig 2: Front No. 2 Speaker Assembly (For LH Side) Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 12 Speakers

for 24 Speakers

for RH Side:

Tighten the 2 screws in the order shown in the illustration to install the front No. 2 speaker assembly.

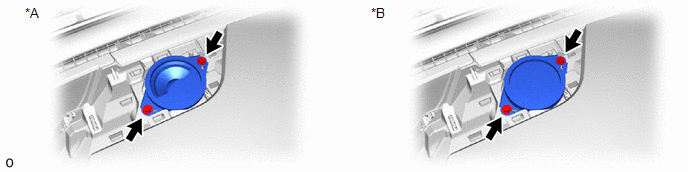

Fig 3: Front No. 2 Speaker Assembly (For RH Side) Replacement Components

for 12 Speakers

for 24 Speakers

INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)
Refer to PROCEDURE - Step 7 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]
INSTALL FRONT PILLAR GARNISH RH (for Side)
Refer to PROCEDURE - Step 39 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 39 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 39 [11/2021 - 10/2023] , or refer to PROCEDURE - Step 39 [10/2023 - ]
INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 28 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 31 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 30 [10/2023 - ]
