Removal [03/2017 - 06/2019]: Procedure

TABLE OF BOLT, SCREW AND NUT
HINT:

All bolts and screws relevant to installing and removing the instrument panel are shown along with their alphabetic code in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [03/2017 - 05/2023]
ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to CUSTOMIZE PARAMETERS [03/2017 - ]
REMOVE NO. 2 DECK BOARD
Refer to PROCEDURE - Step 11

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Refer to PROCEDURE - Step 2

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
Refer to PRECAUTION [03/2017 - 04/2020]
If the airbag deploys for any reason, it may cause a serious accident.

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [03/2017 - 04/2020]

REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

Place both hands at the position shown in the illustration and pull towards the rear of the vehicle to detach the clips, claw and guides.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hands here
	Remove in this Direction

Lift up the center upper instrument panel cluster finish panel as shown in the illustration to remove it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE METER HOOD SUB-ASSEMBLY

Disconnect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the screw <F> or <H> and 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull the part in the removal direction shown in the illustration to detach the clips and guides and remove the meter hood sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

REMOVE COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 4

REMOVE FRONT DOOR SCUFF PLATE LH

Place your hand at the position shown in the illustration and open the front door scuff plate LH towards the center of the vehicle. Then, lift it up in the direction of the arrow to detach the claws and guide.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place both hands in the gap in the vehicle and while pulling in the direction of the arrow shown in the illustration to detach the clips, claws and guide and remove the front door scuff plate LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hands here
	Remove in this Direction
	Order of Removal

REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.

REMOVE FRONT DOOR OPENING TRIM COVER LH

Place your hand at the position shown in the illustration and pull in the direction of the arrow to detach the claws and guide and remove the front door opening trim cover LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT:

Use the same procedure described for the LH side.

REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction of the arrow to detach the clip and claw and remove the front door No. 2 opening trim cover LH.

REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER RH

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place your hand at the position shown in the illustration and pull in the direction of the arrow to detach the clip and claw and remove the front door No. 2 opening trim cover RH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the claws and lower the No. 1 instrument panel under cover sub-assembly in the direction of the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Detach the claw of the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull in the direction of the arrow shown in the illustration to detach the guides and remove the No. 1 instrument panel under cover sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE NO. 1 GLOVE COMPARTMENT PANEL

Place your hand at the position shown in the illustration and pull the No. 1 glove compartment panel towards the rear of the vehicle to detach the clips and remove the No. 1 glove compartment panel.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction
	Order of Removal

REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [03/2017 - 05/2023]

REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Apply protective tape at the position shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

Insert moulding remover A at the position shown in the illustration and detach the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Place a hand into the gap and pull horizontally towards the rear of the vehicle to detach the claws and guides.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction
	Order of Removal

Place your hand in the gap and pull diagonally to the upper rear of the vehicle to detach the claws and guides and remove the No. 2 instrument panel garnish sub-assembly.

REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Detach the claw and guides and remove the hood lock control lever sub-assembly from the No. 1 instrument panel safety pad sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Remove the 3 bolts <E>.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claws and guide.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Pull in the direction indicated by the arrow shown in the illustration to detach the clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Detach the clamp and disconnect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the clamps and disconnect the 2 connectors and remove the No. 1 instrument panel safety pad sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE INSTRUMENT PANEL REGISTER BEZEL

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Pull in the direction of the arrow shown in the illustration to detach the claws and remove the instrument panel register bezel.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to PROCEDURE - Step 15
REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 5
REMOVE ANTENNA DIVIDER
Refer to PROCEDURE - Step 5
REMOVE DCM (TELEPHONE TRANSCEIVER)
Refer to PROCEDURE - Step 5

REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

Apply protective tape at the position shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

Pull in the direction of the arrow shown in the illustration to detach the claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Pull the No. 2 instrument panel register assembly and disconnect the connector and remove the No. 2 instrument panel register assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Detach the claws and lower the No. 2 instrument panel under cover sub-assembly in the direction of the arrow shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull in the direction of the arrow shown in the illustration to detach the guides and remove the No. 2 instrument panel under cover sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE NO. 2 GLOVE COMPARTMENT PANEL

Place your hand at the position shown in the illustration and pull the No. 2 glove compartment panel towards the outside of the vehicle to detach the claws and remove the No. 2 glove compartment panel.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 17

REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Detach the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt <E>
	Screw <G>

Remove the 2 bolts <E> and 2 screws <G>.

Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place hand here
	Remove in this Direction

Detach the clamps and hook and remove the glove compartment door assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Clamp
*b	Hook

Disconnect the 3 connectors.

REMOVE MULTI-DISPLAY
Refer to PROCEDURE - Step 10
REMOVE FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 12
REMOVE FRONT PILLAR GARNISH RH
HINT:

Use the same procedure described for the LH side.

REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

Disconnect the 2 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the claw and remove the connector holder.

Lift up the part in the removal direction shown in the illustration to detach the claws.

	Place hand here
	Remove in this Direction

Pull in the direction of the arrow shown in the illustration to detach the guides and remove the No. 1 instrument panel speaker panel sub-assembly.

Remove in this Direction

REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

	Place hand here
	Remove in this Direction

Lift up the part in the removal direction shown in the illustration to detach the claws.

Remove in this Direction

Pull in the direction of the arrow shown in the illustration to detach the guides and remove the No. 2 instrument panel speaker panel sub-assembly.

REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 6
REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 16
REMOVE STEERING WHEEL SWITCH HOUSING
Refer to REMOVAL [03/2017 - 05/2023]

REMOVE NO. 2 AIR DUCT

Remove the 2 bolts and No. 2 air duct in the direction of the arrow shown in the illustration.

Remove in this Direction

REMOVE HEATER TO REGISTER CENTER SUB DUCT

Remove the 2 screws <F> or <H> and heater to register center sub duct.

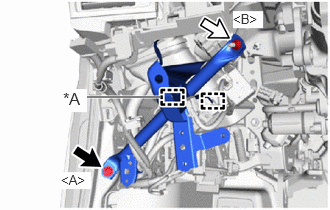

REMOVE NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY

Detach the clamps.

*A	w/ Clearance Sonar System
	Bolt <A>
	Nut <B>

Remove the bolt <A>, nut <B> and No. 3 instrument panel to cowl brace sub-assembly.

REMOVE NO. 3 SIDE DEFROSTER NOZZLE DUCT

Remove the No. 3 side defroster nozzle duct.

REMOVE NO. 4 SIDE DEFROSTER NOZZLE DUCT
HINT:

Use the same procedure described for the No. 3 side defroster nozzle duct.

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Disconnect airbag connector:

Push down the housing lock and slide the CPA to release the lock.

NOTE:

Do not pull while holding the wire harness.

*a	Housing Lock	*b	CPA
*c	Disconnect the connector lock	-	-

With the housing lock pushed down again, slide the CPA to disconnect the airbag connector.

After disconnecting the airbag connector, check that the CPA is positioned further back than the housing.

*a	CORRECT	*b	INCORRECT
*c	CPA	*d	Housing

Remove the 2 bolts <I>.

Detach the clamp and disconnect the connector.

Detach the clamps.

Disconnect the 2 connectors.

Disconnect the connector.

Detach the claws and remove the cooler thermistor (recirculated air temperature) from the instrument panel safety pad sub-assembly.

*1	Cooler Thermistor (Recirculated Air Temperature)	-	-
	Bolt <E>		Nut <C> or <D>

Detach the clamp.
Remove the 8 bolts <E>, and nut <C> or <D>.

Pull as shown in the illustration to detach the guides.

Remove in this Direction

Lift up the instrument panel safety pad sub-assembly as shown in the illustration to remove it.

Remove in this Direction
