Removal [03/2017 - 04/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 11

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    WARNING:
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      Refer to PRECAUTION [03/2017 - 04/2020]

    • If the airbag deploys for any reason, it may cause a serious accident.
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 04/2020]

  4. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to REMOVAL [03/2017 - 05/2023]

  5. REMOVE DCM (TELEMATICS TRANSCEIVER)

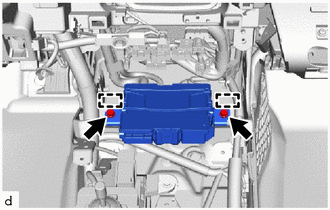

    1. Remove the 2 bolts.
      GTY800865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guides and remove the DCM (telematics transceiver).

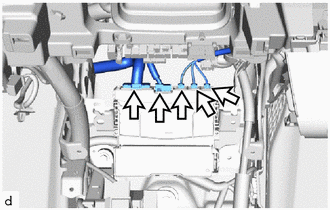

    3. Disconnect the 5 connectors.
      GTY838059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
