Removal [07/2015 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [07/2015 - ]

  2. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [07/2015 - ]

  4. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 10 claws and remove the front door scuff plate LH.
      GTY405081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the clip.
      GTY405080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and clip, and remove the cowl side trim board LH.
  6. REMOVE FRONT DOOR OPENING TRIM COVER LH
    1. Disengage the 3 claws and remove the front door opening trim cover LH.
      GTY618706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT PILLAR GARNISH LH

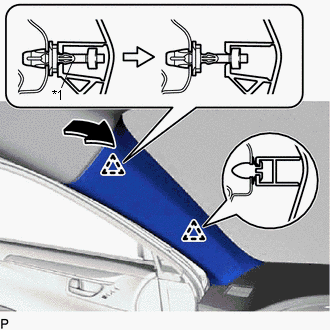

    1. Pull the upper part of the front pillar garnish LH toward the inside of the cabin to disengage the clip and the front pillar garnish LH from the base of the front pillar garnish clip.
      GTY654287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front Pillar Garnish Clip

      HINT:

      Make the front pillar garnish LH hang from the front pillar garnish clip.

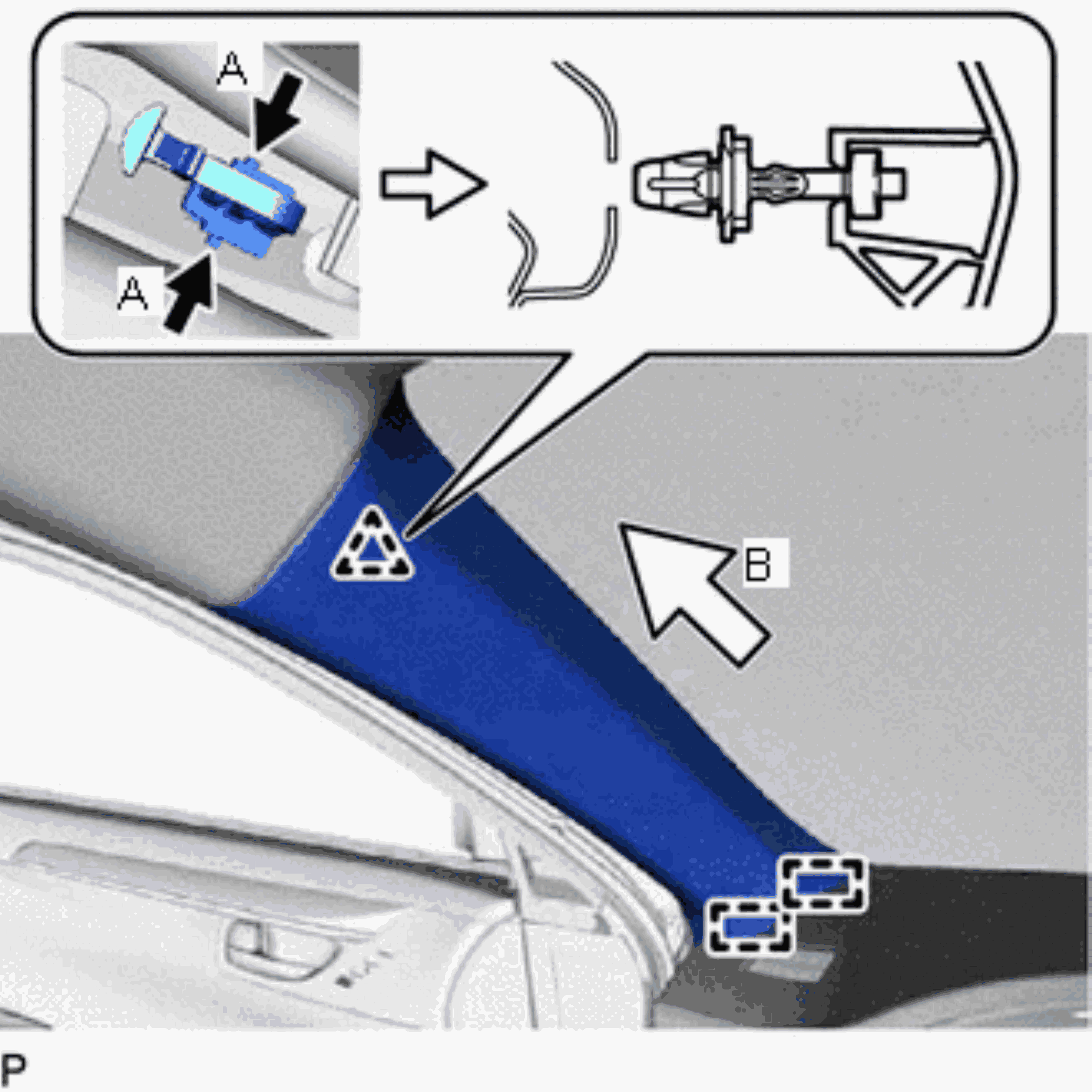

    2. While pushing the tabs of the front pillar garnish clip in the direction indicated by the arrow (A) shown in the illustration, disengage the front pillar garnish clip.
      GTY645931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the garnish in the direction indicated by the arrow (B) shown in the illustration to disengage the 2 guides and remove the front pillar garnish LH.

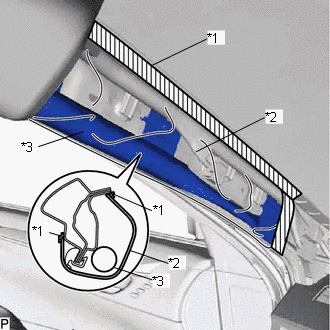

    4. Protect the curtain shield airbag assembly.
      GTY677269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Adhesive Tape
      *2 Protective Cover
      *3 Curtain Shield Airbag Assembly
      1. Cover the airbag with a piece of cloth or nylon and secure the edges of the cover with tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish LH is removed.

  8. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 8 claws and remove the rear door scuff plate LH.
      GTY405159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Disengage the 2 claws and 2 guides.
      GTY405160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips and remove the center pillar lower garnish LH.
  10. REMOVE CENTER PILLAR UPPER GARNISH LH
    1. Remove the 2 clips.
      GTY618571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip as shown in the illustration.
      GTY663606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pass the floor anchor of the front seat outer belt assembly LH through the center pillar upper garnish LH and remove the center pillar upper garnish LH.
  11. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE CENTER PILLAR UPPER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  18. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the 5 claws and remove the rear seat side garnish LH.
      GTY405164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the 4 clips.
      GTY405165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the roof side inner garnish assembly LH.
  20. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  21. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE LOWER SHIFT LEVER ASSEMBLY

    Refer to REMOVAL [07/2015 - ]

  23. REMOVE INSTRUMENT PANEL SAFETY PAD

    Refer to REMOVAL [07/2015 - ]

  24. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Pre-collision System)

    Refer to PROCEDURE - Step 1

  25. REMOVE PROTECTOR

    Refer to PROCEDURE - Step 1

  26. REMOVE RAIN SENSOR COVER (w/o Pre-collision System)

    w/ Rain Sensor: (Refer to PROCEDURE - Step 1 )

  27. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  28. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  29. REMOVE ROOF CONSOLE BOX ASSEMBLY

    Refer to PROCEDURE - Step 1

  30. REMOVE SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  31. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure for the RH side.

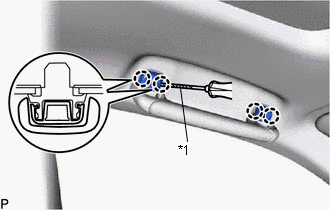

    1. Using a screwdriver, disengage the 4 claws and remove the 2 assist grip covers.
      GTY622690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      NOTE:

      Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      Tape the screwdriver tip before use.

    2. Disengage the 2 clips and remove the assist grip sub-assembly.
      GTY418012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 clips from the vehicle body.
  32. REMOVE REAR ASSIST GRIP ASSEMBLY LH

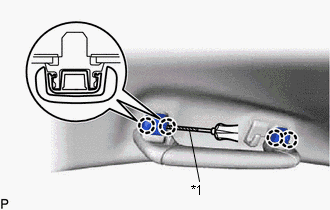

    1. Using a screwdriver, disengage the 4 claws and remove the 2 assist grip covers.
      GTY635529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      NOTE:

      Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      Tape the screwdriver tip before use.

    2. Disengage the 2 clips and remove the rear assist grip assembly LH.
      GTY404239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 clips from the vehicle body.
  33. REMOVE REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  34. REMOVE VISOR BRACKET COVER (for LH Side)
    1. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover.
      GTY404235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor assembly LH.
      GTY404234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE VISOR BRACKET COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  37. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  38. REMOVE VISOR HOLDER

    HINT:

    Use the same procedure for the other visor holder.

    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.
      GTY650292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a 45°
    2. Disengage the 2 claws and remove the visor holder.
  39. REMOVE ROOF HEADLINING ASSEMBLY
    1. Disconnect the connector from the inner rear view mirror assembly.
    2. Disconnect the connector from the humidity sensor.
    3. w/ Rain Sensor:
      1. Disconnect the connector from the rain sensor.
    4. w/ Pre-collision System:
      1. Disconnect the connector from the forward recognition camera.
    5. Disconnect the connector from the sliding roof drive gear sub-assembly.

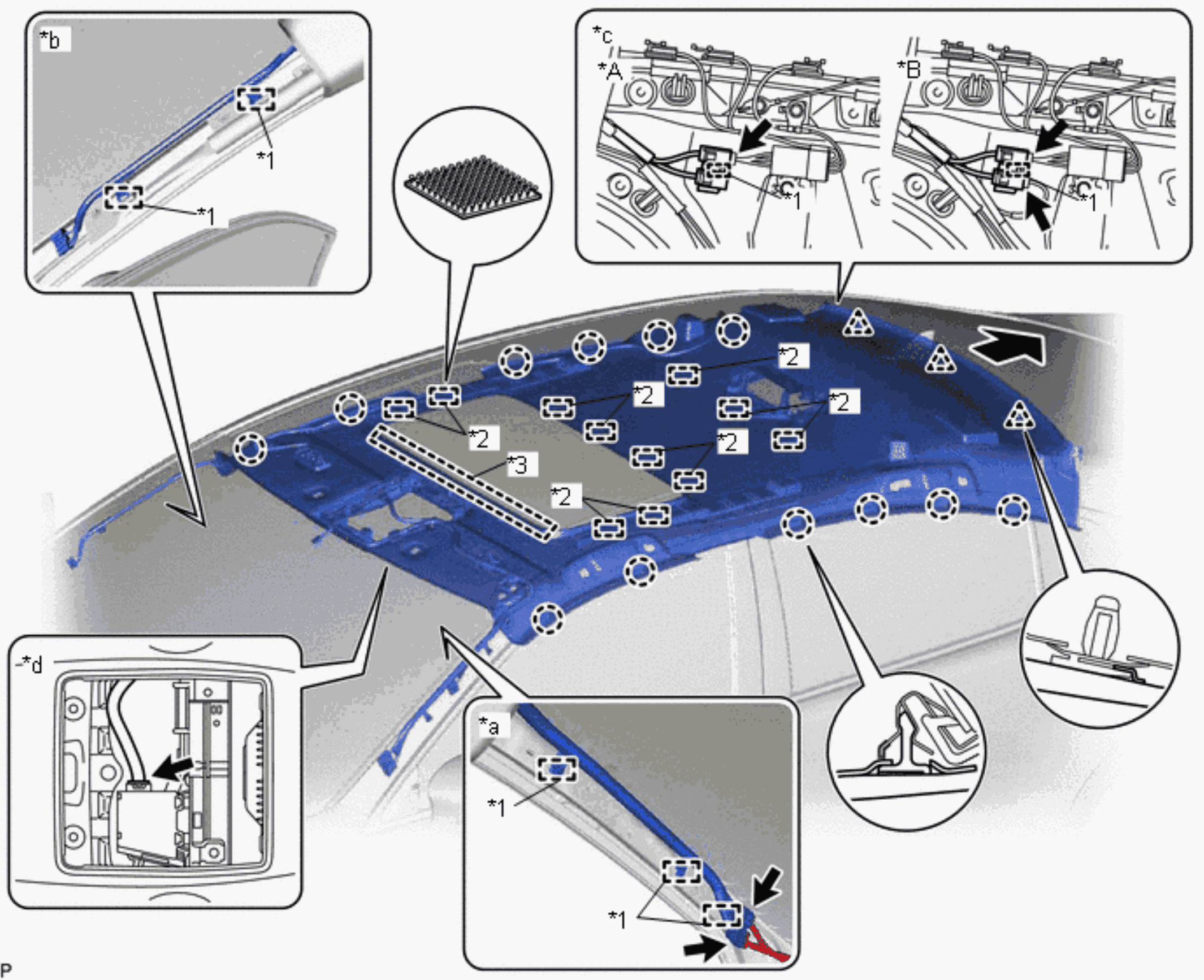

      GTY619274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A w/o Telephone Antenna *B w/ Telephone Antenna
      *1 Clamp *2 Fastener
      *3 Guide - -
      *a Front Pillar LH *b Front Pillar RH
      *c Rear Pillar RH *d Sliding Roof Drive Gear Sub-assembly
    6. Disengage the 3 clamps and disconnect the 2 connectors from the front pillar LH.
    7. Disengage the 2 clamps from the front pillar RH.
    8. w/o Telephone Antenna:
      1. Disengage the clamp and disconnect the connector from the rear pillar RH.
    9. w/ Telephone Antenna:
      1. Disengage the clamp and disconnect the 2 connectors from the rear pillar RH.
    10. Disengage the 12 claws and 11 fasteners.
    11. Slide the roof headlining assembly to disengage the 3 clips and guide as shown in the illustration.

      HINT:

      Leave the 3 clips installed to the vehicle.

    12. Remove the roof headlining assembly from the vehicle through the rear door as shown in the illustration.
      GTY410543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof headlining assembly or vehicle interior.

    13. Remove the 3 clips from the vehicle body as shown in the illustration.
      GTY417792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the front door opening trim weatherstrip LH.
    2. Remove any residual weatherstrip sealant from the vehicle body using cleaner.
      NOTE:

      Remove the sealant completely. Any residual sealant may transfer to other areas of the vehicle when removing/installing the interior parts.

  41. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  42. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the rear door opening trim weatherstrip LH.
    2. Remove any residual weatherstrip sealant from the vehicle body using cleaner.
      NOTE:

      Remove the sealant completely. Any residual sealant may transfer to other areas of the vehicle when removing/installing the interior parts.

  43. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.
