Removal (2016 - 2017): Procedure

  1. REMOVE SPOT LIGHT ASSEMBLY

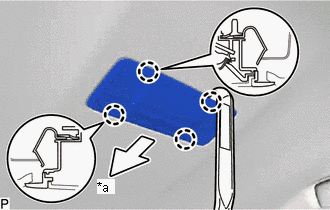

    1. Using a moulding remover, disengage the 4 claws.
      GTY621930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front
    2. Disconnect the connector to remove the spot light assembly.
