Removal (2016 - 2017): Procedure

  1. REMOVE ROOF CONSOLE BOX ASSEMBLY

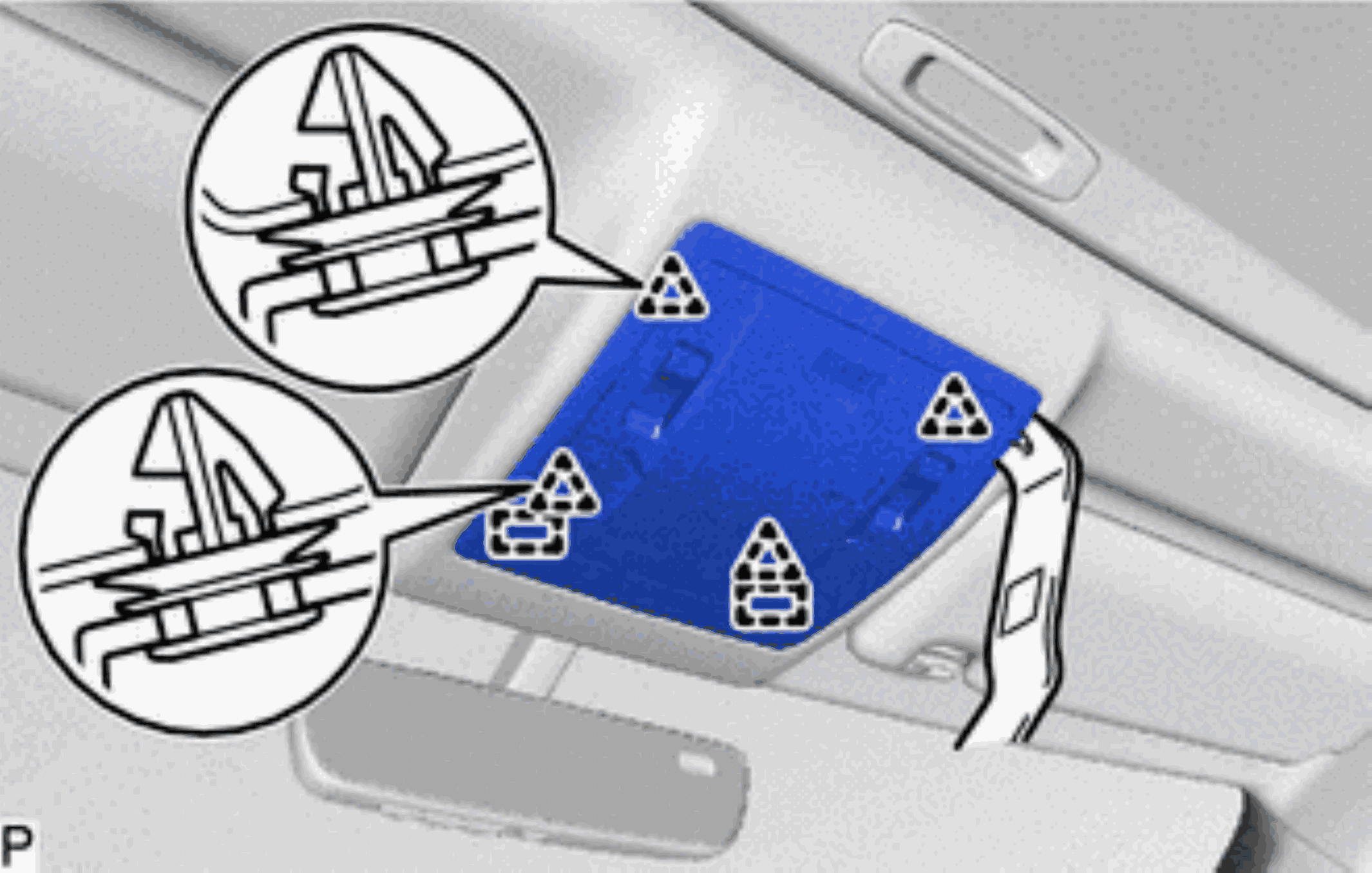

    1. Using a moulding remover, disengage the 4 clips.
      GTY614183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides.
    3. Disconnect each connector to remove the roof console box assembly.
