Removal [07/2015 - ]: Procedure

  1. REMOVE PROTECTOR (w/o Pre-collision System)
    1. Disengage the 2 guides as shown in the illustration.
      GTY402258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the protector.
      GTY417393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE PROTECTOR (w/ Pre-collision System)

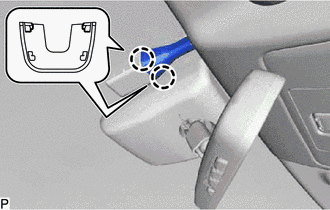

    1. Disengage the 2 claws and remove the protector.
      GTY639636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HUMIDITY SENSOR (AIR CONDITIONING THERMISTOR ASSEMBLY)
    1. Disconnect the connector.
      GTY402260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Release the stopper by pulling it down.
      GTY632548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Stopper

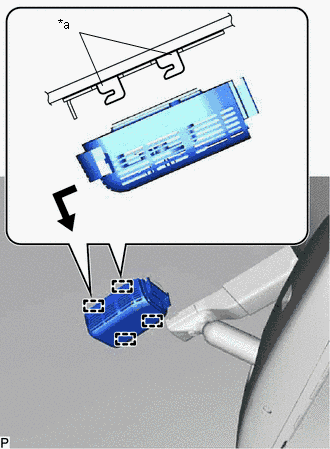

    3. Disengage the 4 guides and remove the humidity sensor (air conditioning thermistor assembly) as shown in the illustration.
      GTY656488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Bracket
