Removal [09/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PROCEDURE - Step 3

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - ] ).

  4. REMOVE FRONT BUMPER COVER

    Refer to REMOVAL [09/2015 - ]

  5. REMOVE V-BANK COVER SUB-ASSEMBLY

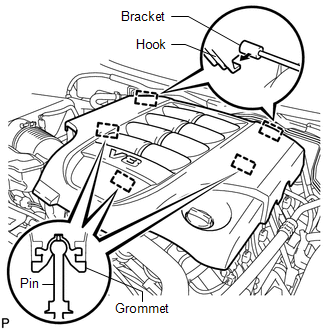

    1. GTY628782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Raise the front of the V-bank cover to detach the 3 pins. Then remove the 2 V-bank cover hooks from the bracket, and remove the V-bank cover.

  6. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  7. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 5

  8. REMOVE OIL PAN PROTECTOR ASSEMBLY

    Refer to PROCEDURE - Step 12

  9. REMOVE FRONT FENDER APRON TRIM PACKING B

    Refer to PROCEDURE - Step 8

  10. REMOVE FRONT FENDER APRON TRIM PACKING D

    Refer to PROCEDURE - Step 9

  11. REMOVE FRONT FENDER APRON TRIM PACKING A

    Refer to PROCEDURE - Step 6

  12. REMOVE FRONT FENDER APRON TRIM PACKING C

    Refer to PROCEDURE - Step 7

  13. REMOVE TRANSMISSION OIL COOLER AIR DUCT

    (Refer to REMOVAL [09/2015 - 08/2019] , or refer to REMOVAL [08/2019 - ] )

  14. REMOVE RADIATOR SIDE DEFLECTOR LH

    Refer to PROCEDURE - Step 7

  15. REMOVE FRONT FENDER MAIN SEAL LH

    Refer to PROCEDURE - Step 4

  16. REMOVE FRONT FENDER MAIN SEAL RH

    Refer to PROCEDURE - Step 5

  17. REMOVE FRONT WIPER ARM LH

    Refer to PROCEDURE - Step 7

  18. REMOVE FRONT WIPER ARM RH

    Refer to PROCEDURE - Step 8

  19. REMOVE HOOD TO COWL TOP SEAL

    Refer to PROCEDURE - Step 9

  20. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  21. REMOVE HOOD SUB-ASSEMBLY
    1. GTY624551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 hood support bolts and disconnect the hood supports.

      WARNING:

      Remove the hood support assembly while supporting the hood by hand.

    2. Remove the 4 bolts and hood.
  22. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 1 [09/2015 - 08/2020] , or refer to PROCEDURE - Step 1 [08/2020 - ]

  23. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 5

  24. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 10

  25. REMOVE AIR CLEANER ASSEMBLY
    1. GTY611281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 bolts and air cleaner.

  26. REMOVE NO. 1 RADIATOR HOSE
  27. REMOVE NO. 2 RADIATOR HOSE
  28. REMOVE FAN SHROUD

    Refer to PROCEDURE - Step 11

  29. REMOVE RADIATOR ASSEMBLY

    Refer to PROCEDURE - Step 12

  30. REMOVE WATER HOSE SUB-ASSEMBLY
    GTY624667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. DISCONNECT FUEL MAIN AND RETURN HOSE
    1. Remove the fuel pipe clamp.
      GTY624559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel main and return hoses (Refer to PRECAUTION [09/2015 - ] ).
  32. DISCONNECT WIRE HARNESS AND HOSE
    1. Disconnect the purge line hose.
      GTY585194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the clamp and ECM connector.

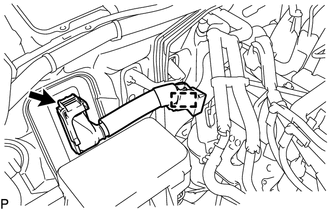

      GTY676075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Refer to the following procedures to disconnect the ECM connector (Refer to PROCEDURE - Step 3 ).

    3. Disconnect the 5 connectors and clamp from the connector holder block.

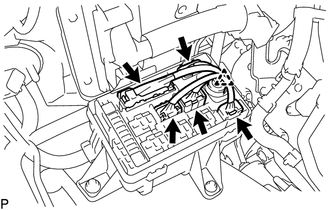

      GTY628751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 2 air pump connectors and 3 clamps.
      GTY611232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the nut and connector bracket.
    6. Remove the bolt and disconnect the ground wire.
    7. Disconnect the 2 air injection system hoses.
    8. Remove the nut and disconnect the wire from the positive (+) battery cable.
      GTY600331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disconnect the cable from the positive (+) battery terminal.
    10. Remove the bolt and disconnect the ground wire and clamp from the body.
    11. Disconnect the 4 air injection control driver connectors.
      GTY601310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Remove the nut and disconnect the wire and 2 clips from the engine room junction block.
    13. Disconnect the 2 connectors and 2 clips from the engine room junction block.
    14. Disconnect the 2 connectors and 2 clamps.

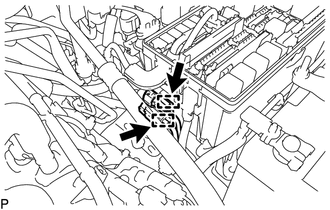

      GTY628766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. DISCONNECT COOLER COMPRESSOR ASSEMBLY

    Refer to PROCEDURE - Step 21

  34. DISCONNECT VANE PUMP ASSEMBLY

    Refer to PROCEDURE - Step 31

  35. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 14

  36. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 10

  37. REMOVE TAILPIPE ASSEMBLY

    Refer to PROCEDURE - Step 2

  38. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 4

  39. REMOVE FRONT NO. 2 EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 5

  40. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 6

  41. REMOVE FRONT PROPELLER SHAFT ASSEMBLY
    1. Remove the front propeller shaft (Refer to REMOVAL [09/2015 - ] ).
  42. REMOVE REAR PROPELLER SHAFT ASSEMBLY
    1. Remove the rear propeller shaft (Refer to REMOVAL [09/2015 - ] ).
  43. REMOVE PROPELLER SHAFT HEAT INSULATOR

    Refer to PROCEDURE - Step 15

  44. REMOVE NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 16

  45. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 17

  46. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 18

  47. REMOVE NO. 1 MANIFOLD STAY

    Refer to PROCEDURE - Step 19

  48. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 20

  49. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 21

  50. REMOVE STARTER COVER

    Refer to PROCEDURE - Step 4

  51. REMOVE STARTER ASSEMBLY

    Refer to PROCEDURE - Step 5

  52. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
    1. Remove the automatic transmission (Refer to REMOVAL [09/2015 - ] ).
  53. REMOVE REAR NO. 1 ENGINE MOUNTING INSULATOR
    GTY562737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and engine mounting heat insulator.
    2. Remove the 4 bolts and rear engine mounting insulator from the transmission.
  54. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
    1. Using SST, hold the crankshaft.

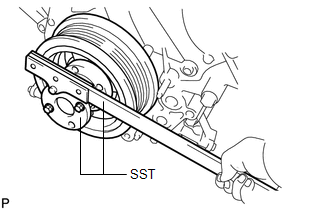

      GTY618336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-70011
      • SST: 09330-00021
    2. Remove the 10 bolts, rear drive plate spacer, drive plate and crankshaft position sensor rotor.
      GTY147885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. DISCONNECT OIL COOLER TUBE
    1. Remove the 2 bolts and disconnect the oil cooler tube.
      GTY555620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. REMOVE WATER PIPE AND HOSE SUB-ASSEMBLY
    1. Remove the 2 bolts and disconnect the hose. Then remove the water pipe and hose.
      GTY624630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE ENGINE ASSEMBLY
    1. Install 2 engine hangers with 2 bolts as shown in the illustration.
      GTY566896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Part No.

      Item Part No.
      Engine hanger 12281-38030
      Bolt 90119-14120

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    2. Attach an engine sling device and hang the engine with a chain block.
    3. Remove the 4 engine mounting insulator bolts.
      GTY680995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Lift the engine out from the vehicle slowly and carefully.
      NOTE:

      Make sure the engine is clear of all wiring, hoses and cables.

  58. REMOVE FRONT ENGINE MOUNTING INSULATOR LH
    1. GTY610744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the nut and mounting insulator.

  59. REMOVE FRONT ENGINE MOUNTING INSULATOR RH
    1. GTY610742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the nut and mounting insulator.

  60. REMOVE FRONT NO. 2 ENGINE MOUNTING BRACKET LH
    1. Remove the bolt and engine mounting bracket LH.
      GTY611111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. INSTALL ENGINE ON ENGINE STAND
    1. Install the engine onto an engine stand with bolts.
    2. Remove the 2 bolts and 2 engine hangers.
