Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT BUMPER COVER

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. DRAIN ENGINE COOLANT

    See step  5

  4. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  5. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  6. REMOVE RADIATOR SIDE DEFLECTOR RH (w/o Air Cooled Transmission Oil Cooler)
    1. Using a clip remover, remove the 4 clips and side deflector.
      GTY645793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE RADIATOR SIDE DEFLECTOR LH
    1. Using a clip remover, remove the 4 clips and side deflector.
      GTY645794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 10

  9. REMOVE NO. 1 RADIATOR HOSE
  10. REMOVE NO. 2 RADIATOR HOSE
  11. REMOVE FAN SHROUD
    1. Loosen the 4 nuts holding the fluid coupling fan.
      GTY547911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the fan and generator V belt (Refer to PROCEDURE - Step 6 ).
    3. Disconnect the reservoir hose from the upper radiator tank.

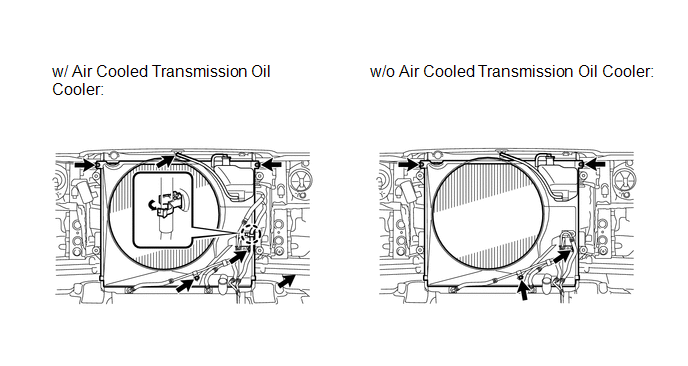

      GTY665172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Air Cooled Transmission Oil Cooler:

      Detach the claw to open the flexible hose clamp.

    5. Remove the 2 bolts and disconnect the oil cooler tube from the fan shroud.
    6. Remove the 2 bolts holding the fan shroud.
    7. Remove the 4 nuts of the fluid coupling fan, and then remove the shroud together with the coupling fan.
      NOTE:

      Be careful not to damage the radiator core.

    8. Remove the fan pulley.
  12. REMOVE RADIATOR ASSEMBLY
    1. Disconnect the 2 oil cooler hoses.
      GTY611610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and radiator.

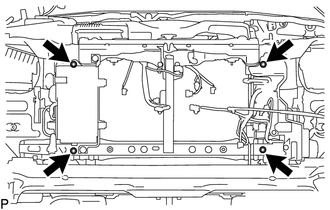

      GTY645791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
