Removal [09/2015 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    See step  5

  3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 2

  5. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  6. REMOVE FAN AND GENERATOR V BELT

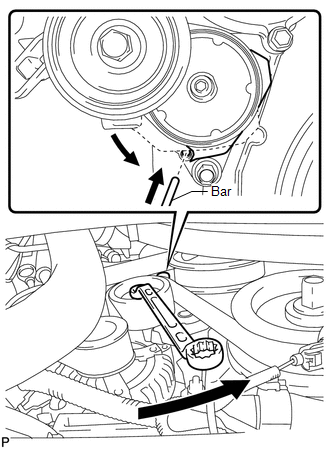

    1. While turning the belt tensioner counterclockwise, align the service hole for the belt tensioner and the belt tensioner fixing position, and then insert a bar of 5 mm (0.197 in.) into the service hole to fix the belt tensioner in place.
      GTY620672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The pulley bolt for the belt tensioner has a left-hand thread.

    2. Remove the V belt.
