Disassembly [09/2015 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

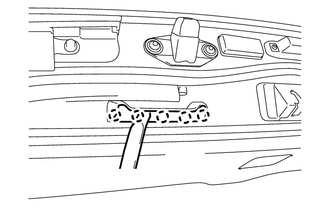

- REMOVE BACK DOOR GRIP
- REMOVE LOWER BACK DOOR STOPPER CUSHION

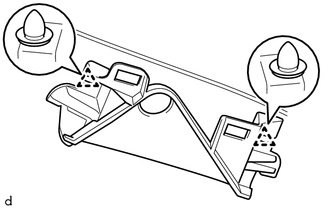

- REMOVE CENTER BACK DOOR GARNISH
- REMOVE CENTER STOP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2

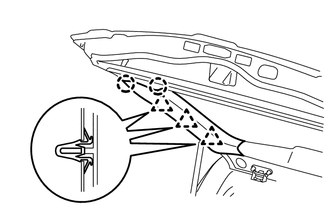

- REMOVE BACK DOOR SIDE GARNISH LH

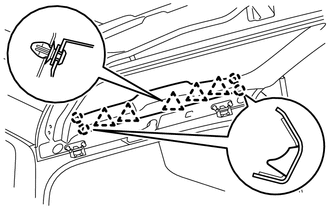

- REMOVE BACK DOOR SIDE GARNISH RH
- DISCONNECT POWER BACK DOOR ROD

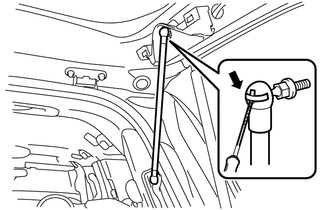

- Move the back door to a half-open position so that the hole in the center of the back door service hole cover is aligned lengthwise with the power back door rod.TEXT IN ILLUSTRATION
*1 Power Back Door Rod *2 Hole of Back Door Service Hole Cover *a Back Door is Half-open - Using a thin-bladed screwdriver with its tip wrapped in protective tape, remove the stop ring from power back door rod as shown in the illustration.TEXT IN ILLUSTRATION

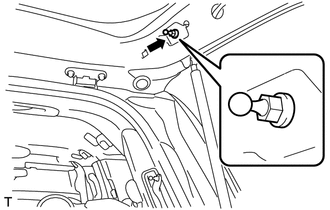

Protective Tape - Detach the ball joint and disconnect the power back door rod.
- Move the back door to a half-open position so that the hole in the center of the back door service hole cover is aligned lengthwise with the power back door rod.
- REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER
- REMOVE BACK DOOR STAY BOLT
- REMOVE BACK DOOR STAY PLATE
- REMOVE LIFT GATE WEATHERSTRIP
- REMOVE BACK DOOR GARNISH
- REMOVE REAR HEADER SPEAKER ASSEMBLY (for 19 Speakers)
Refer to PROCEDURE - Step 8
- REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH
See step 6
- REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
- REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE REAR WIPER MOTOR GROMMET
Refer to PROCEDURE - Step 7
- REMOVE REAR WIPER MOTOR ASSEMBLY
Refer to PROCEDURE - Step 8
- REMOVE BACK DOOR LOCK COVER
Refer to PROCEDURE - Step 5
- REMOVE BACK DOOR LOCK ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE SWITCH BEZEL
See step 5
- REMOVE DOOR CONTROL SWITCH
See step 6
- REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE BACK DOOR GARNISH RETAINER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE LICENSE PLATE LIGHT ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
See step 2
- REMOVE REAR TELEVISION CAMERA ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE CUSHION
- REMOVE LOWER BACK DOOR STOPPER
- REMOVE REAR SPOILER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE REAR WASHER NOZZLE
Refer to PROCEDURE - Step 2
- REMOVE REAR LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 9
- REMOVE REAR LIGHT ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
