Removal [09/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  2. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - ] ).

  4. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 4

  5. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 6

  6. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 7

  7. REMOVE BACK DOOR GARNISH

    Refer to PROCEDURE - Step 13

  8. REMOVE REAR HEADER SPEAKER ASSEMBLY

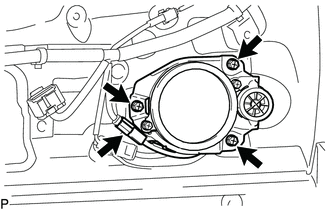

    1. Remove the 3 screws and disconnect the connector.
      GTY677303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 grommets and speaker.
      NOTE:

      Do not touch the cone part of the speaker.
