Removal [09/2015 - ]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 4

  2. REMOVE REAR SPOILER SUB-ASSEMBLY
    NOTE:

    If the rear spoiler sub-assembly has been removed, replace the protector and seal with a new one.

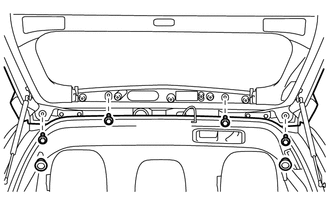

    1. Remove the 2 hole plugs and 4 bolts.
      GTY668189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Put protective tape around the rear spoiler sub-assembly.
      GTY625472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
    3. Detach the 3 clips and remove the rear spoiler sub-assembly.
      GTY668188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SPOILER NO. 1 PROTECTOR (for Front Side)

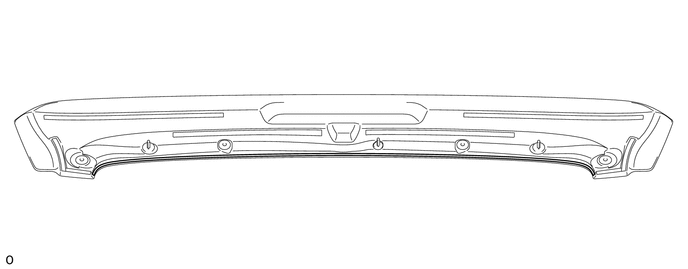

    1. Remove the rear spoiler No. 1 protector.
      GTY775299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SPOILER NO. 1 PROTECTOR (for Rear Side)

    HINT:

    Use the same procedure described for the other side.

    1. Remove the rear spoiler No. 1 protector.
      GTY827319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SPOILER NO. 3 PROTECTOR

    HINT:

    Use the same procedure described for the other side.

    1. Remove the rear spoiler No. 3 protector.
      GTY775305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SPOILER NO. 2 PROTECTOR

    HINT:

    Use the same procedure described for the other side.

    1. Remove the rear spoiler No. 2 protector.
      GTY775507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SPOILER NO. 2 SIDE PROTECTOR

    HINT:

    Use the same procedure described for the other side.

    1. Remove the rear spoiler side No. 2 protector.
      GTY775511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR SPOILER NO. 1 SEAL

    HINT:

    Use the same procedure for all rear spoiler No. 1 seals.

    1. Remove the rear spoiler No. 1 seal.
      GTY775513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
