Removal [09/2015 - ]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 4

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 6

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 7

  4. REMOVE BACK DOOR GARNISH

    Refer to PROCEDURE - Step 13

  5. REMOVE BACK DOOR LOCK COVER
    1. Detach the 4 claws and remove the cover.
      GTY568911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE BACK DOOR LOCK ASSEMBLY

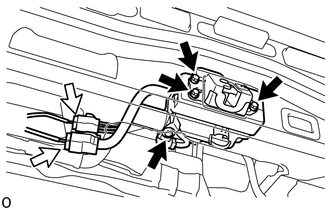

    1. Disconnect the 2 connectors.
      GTY642840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Bolt
      Connector
    2. Remove the 4 bolts and back door lock assembly.
