Removal [09/2015 - ]: Procedure

  1. REMOVE BACK DOOR GARNISH RETAINER SUB-ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE REAR TELEVISION CAMERA ASSEMBLY
    1. Using a T30 "TORX" socket wrench, remove the 2 screws.
      GTY655013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

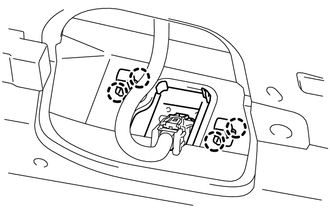

    2. Detach the 2 grommet screws and remove the television camera assembly.
      GTY654860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector.
      GTY655012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
