Removal [10/2016 - 09/2020]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [04/2013 - ]

  2. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR SIDE SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 8

  6. REMOVE REAR SIDE SEATBACK ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

  7. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 10 claws and 2 guides to remove the front door scuff plate LH.
      GTY457076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT DOOR OPENING TRIM COVER LH
    1. Disengage the 3 claws (A).
      GTY674248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Disengage the claws from the lower side of the front door opening trim cover LH.

    2. Disengage the claw (B) and guide to remove the front door opening trim cover LH.
  9. REMOVE FRONT PILLAR GARNISH LH
    1. Apply protective tape around the front pillar garnish LH as shown in the illustration.
      GTY677375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip
      Protective Tape
    2. Pull the upper part of the front pillar garnish LH toward the inside of the cabin to disengage the clip and the front pillar garnish LH from the base of the front pillar garnish clip.

      HINT:

      Let the front pillar garnish LH hang from the front pillar garnish clip.

    3. While pushing the tabs of the front pillar garnish clip as shown in the illustration, disengage it.
      GTY666587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • The front pillar garnish clip is reusable if it is not damaged.
      • If the front pillar garnish clip is damaged, replace it with a new one.

      HINT:

      When the front pillar garnish clip cannot be disengaged easily:

      1. While pushing the tab of the front pillar garnish clip with your finger, move the front pillar garnish clip in the direction shown in the illustration.
        GTY680843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Tab
      2. While pulling the front pillar garnish clip as shown in the illustration, push the tab of the front pillar garnish clip with a screwdriver and disengage the front pillar garnish clip.
        GTY667472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Tab
    4. Disengage the 3 guides to remove the front pillar garnish LH as shown in the illustration.
      GTY684436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly LH.
      GTY632138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Curtain Shield Airbag Assembly LH
      *a Protective Cover
      *b Adhesive Tape
      1. Cover the airbag with a piece of cloth or nylon and secure the edges of the cover with tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish LH is removed.

  10. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 9 claws and 2 guides to remove the rear door scuff plate LH.
      GTY457079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE LOWER CENTER PILLAR GARNISH LH
    1. Disengage the 2 claws and 3 guides.
      GTY459132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clips to remove the lower center pillar garnish LH.
  12. REMOVE CENTER PILLAR GARNISH ASSEMBLY LH
    1. Remove the 2 screws.
      GTY459131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip.
    3. Pass the anchor of the front seat outer belt assembly LH through the center pillar garnish assembly LH and remove the center pillar garnish assembly LH.
  13. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  18. REMOVE CENTER PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  19. REMOVE REAR SEAT SIDE GARNISH LH
    1. Pull the rear seat side garnish LH as shown in the illustration to disengage the claw (A) and guide.
      GTY685204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws (B) to remove the rear seat side garnish LH.

      HINT:

      Disengage the claws from the upper side of the rear seat side garnish LH.

  20. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

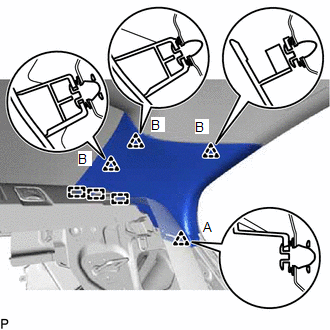

    1. Using a clip remover, disengage the clip (A).
      GTY621834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clips (B).
    3. Disengage the 3 guides to remove the inner roof side garnish assembly LH.
  21. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  23. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT

    Refer to REMOVAL [10/2016 - 09/2020]

  24. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

  25. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 1

  26. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  27. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1 [04/2013 - 09/2018] , or refer to PROCEDURE - Step 1 [09/2018 - 09/2020]

  28. REMOVE SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  29. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure for the LH side and RH side.

    1. Using a screwdriver, disengage the 4 claws and remove the 2 assist grip covers.
      GTY459194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Do not forcibly pry the assist grip cover to prevent it from being deformed.

      HINT:

      Tape the screwdriver tip before use.

    2. Disengage the 2 clips and remove the assist grip.
      GTY469175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 clips from the vehicle body.
  30. REMOVE REAR ASSIST GRIP ASSEMBLY LH

    HINT:

    Use the same procedure as for the front side.

  31. REMOVE REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  32. REMOVE VISOR BRACKET COVER LH
    1. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover LH.
      GTY459140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor assembly LH.
      GTY469185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE VISOR BRACKET COVER RH

    HINT:

    Use the same procedure as for the LH side.

  35. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  36. REMOVE VISOR HOLDER

    HINT:

    Use the same procedure for the LH side and RH side.

    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.
      GTY467929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°
    2. Disengage the 2 claws and remove the visor holder.
  37. REMOVE ROOF HEADLINING ASSEMBLY
    1. for Windshield Glass Side:
      1. Disconnect each connector.
    2. for Front Pillar LH Side:
      1. Disengage the 3 clamps.
        GTY666569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. for Roof Side (w/o Sliding Roof):
      GTY459136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 10 claws.
      2. Slide the roof headlining assembly to disengage the 3 clips and 3 guides as shown in the illustration.

        HINT:

        Leave the 3 clips installed the vehicle body.

    4. for Roof Side (w/ Sliding Roof):
      GTY681536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener *b Guide
      1. Disconnect the connector from the sliding roof drive gear sub-assembly.
      2. Disengage the 10 claws and 8 fasteners.
      3. Slide the roof headlining assembly to disengage the 3 clips and 2 guides as shown in the illustration.

        HINT:

        Leave the 3 clips installed the vehicle body.

    5. Remove the roof headlining assembly from the vehicle through the front door LH as shown in the illustration.
      GTY459077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof headlining assembly or vehicle interior.

    6. Remove the 3 clips from the vehicle body as shown in the illustration.
      GTY470517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the front door opening trim weatherstrip LH.
  39. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the rear door opening trim weatherstrip LH.
  40. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  41. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.
