Installation (To 08/2009): Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL TRANSFER ASSEMBLY
1. Install the 4 new transfer and transaxle setting stud bolts to the transaxle case positions shown in the illustration.

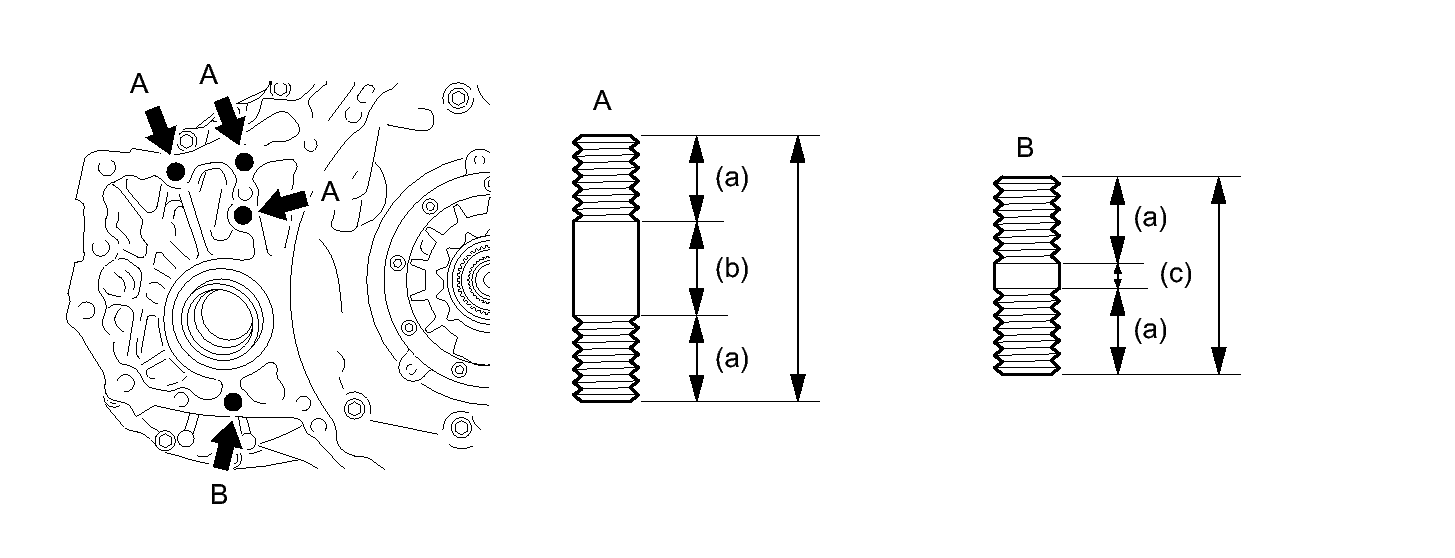

  Fig 1: Identifying Transfer And Transaxle Setting Stud Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Stud bolt length

  a

  22 mm (0.866 in.)

  b

  25 mm (0.984 in.)

  c

  5 mm (0.197 in.)

  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  NOTE:
  Install the sealed side of the stud bolt to the transaxle assembly.
2. Install the transfer assembly to the transaxle assembly with the 8 nuts.

  Fig 2: Removing Transfer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 69 N*m (700 kgf*cm, 51 ft.*lbf)
  NOTE:
  - Install the transfer assembly to the transaxle assembly horizontally.
  - Do not touch the transfer assembly oil seals during installation.
INSTALL AUTOMATIC TRANSAXLE ASSEMBLY . Refer to INSTALLATION - Step 7
INSTALL TRANSFER STIFFENER PLATE RH . Refer to INSTALLATION - Step 7
INSTALL WIRE HARNESS . Refer to INSTALLATION - Step 9
INSTALL TCM . Refer to INSTALLATION - Step 1
INSTALL MANIFOLD STAY . Refer to INSTALLATION - Step 8
INSTALL RADIATOR PIPE CLAMP . Refer to INSTALLATION - Step 9
INSTALL STARTER ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL FRONT FRAME ASSEMBLY . Refer to INSTALLATION - Step 21
INSTALL STEERING LINK ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY
INSTALL FRONT NO. 1 STABILIZER BRACKET LH . Refer to INSTALLATION - Step 5
INSTALL FRONT NO. 1 STABILIZER BRACKET RH . Refer to INSTALLATION - Step 25
INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
HINT:

See the steps from "Install Engine Assembly with Transaxle" through "Install Engine Room Side Cover LH". Refer to INSTALLATION .
