Installation (To 08/2009): Installation

1. Install the 2 No. 1 front stabilizer bar bushings to the front stabilizer bar as shown in the illustration.

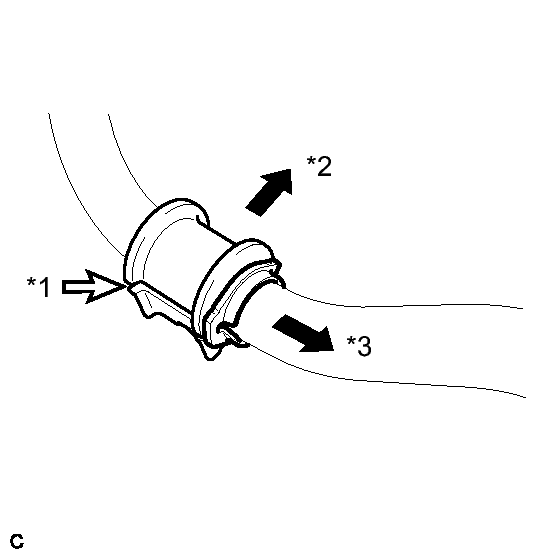

   Fig 1: Identifying No. 1 Front Stabilizer Bar Bushing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Cutout
   *2	Front of the Vehicle
   *3	Inside of the Vehicle

   NOTE:

   When installing the No. 1 front stabilizer bar bushings, make sure that the cutout faces the rear of the vehicle.

1. Install the No. 2 front stabilizer bracket LH to the No. 1 front stabilizer bar bushing.
   Fig 2: Identifying No. 2 Front Stabilizer Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as the LH side.

1. Install the front stabilizer bar by inserting it from the right side of the vehicle.

1. Install the No. 1 front stabilizer bracket LH to the front frame assembly with the 2 bolts.
   Fig 3: Locating Front No. 1 Stabilizer Bracket RH (For AWD)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

HINT:

Perform the same procedure as the LH side.

1. Install the front stabilizer link assembly LH with the nut.
   Fig 4: Locating Front Stabilizer Link Assembly Nut LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud bolt.

HINT:

Perform the same procedure as the LH side.

HINT:

Refer to the procedure from Install Engine Assembly with Transaxle. Refer to INSTALLATION - Step 26 .
