INSTALLATION (To 08/2009): Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL TCM
1. Install the TCM to the transaxle.
2. Install and tighten the 2 bolts in the order shown in the illustration.

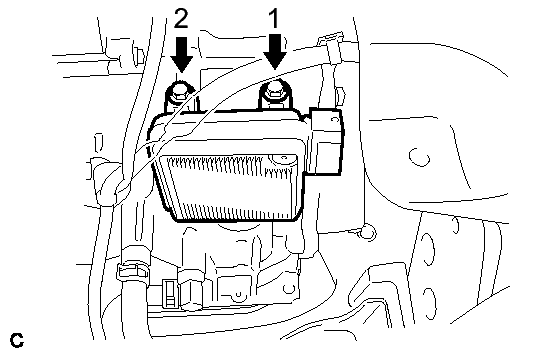

  Fig 1: Identifying Transaxle TCM & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)
3. Connect the connector to the TCM.

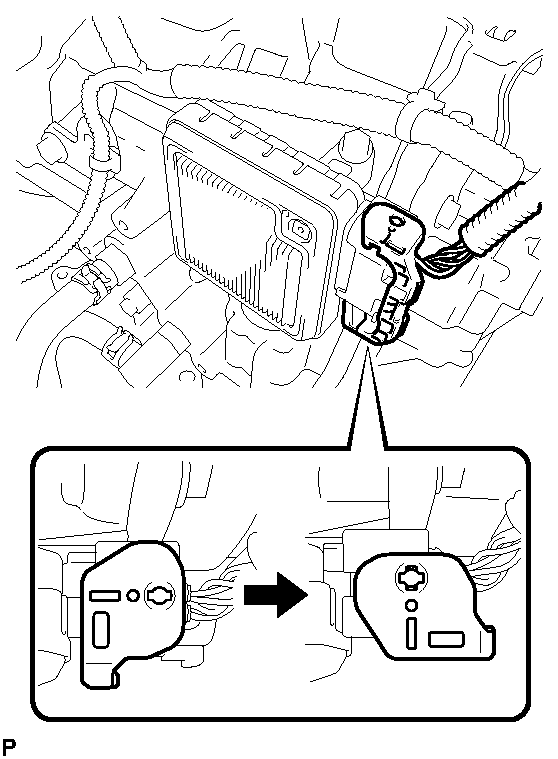

  Fig 2: Identifying TCM Connector & Lock Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the lock lever and secure the connector with the lock lever.
INSTALL AIR CLEANER BRACKET
1. Install the air cleaner bracket with the 3 bolts.

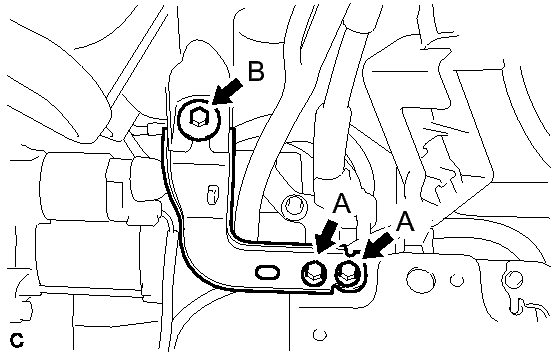

  Fig 3: Identifying Air Cleaner Bracket & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt A

  Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

  Bolt B

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
INSTALL BATTERY . Refer to INSTALLATION - Step 71
INSTALL INLET NO. 1 AIR CLEANER . Refer to INSTALLATION - Step 72
INSTALL INLET NO. 2 AIR CLEANER . Refer to INSTALLATION - Step 73
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 3
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 5
INSTALL ENGINE ROOM SIDE COVER . Refer to INSTALLATION - Step 4
CHECK AUTOMATIC TRANSAXLE SYSTEM
NOTE:
If automatic transmission parts have been replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary. Refer to PRECAUTION .
