Radio Antenna Cord: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/o DVD Player)
    1. Install the antenna cord sub-assembly with the 2 bolts.

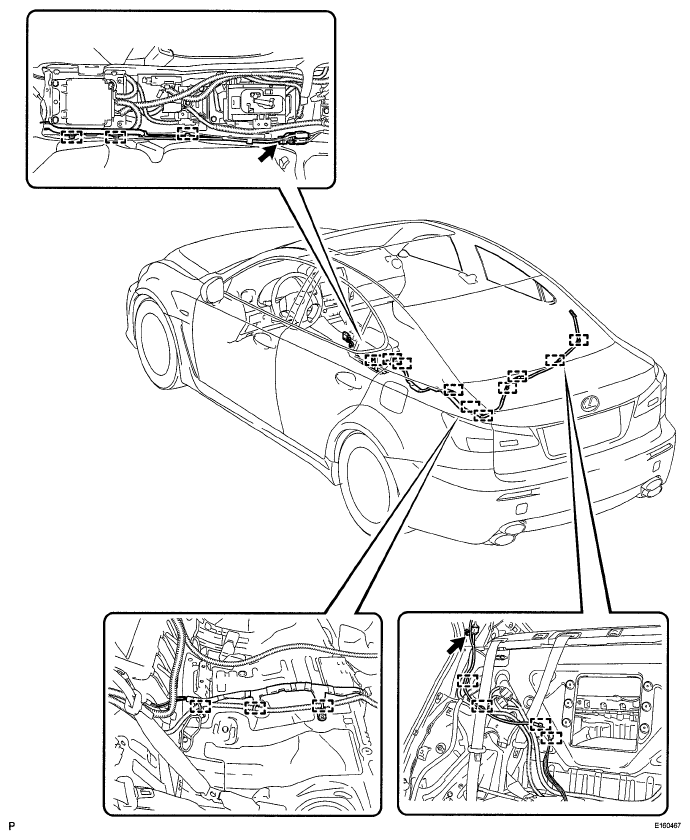

      Fig 1: Identifying Antenna Cord Clamps (W/O DVD Player)
      G05753478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    2. Engage the 10 clamps
    3. Connect the connectors
  2. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/ DVD Player)
    1. Install the antenna cord sub-assembly with the 2 bolts.

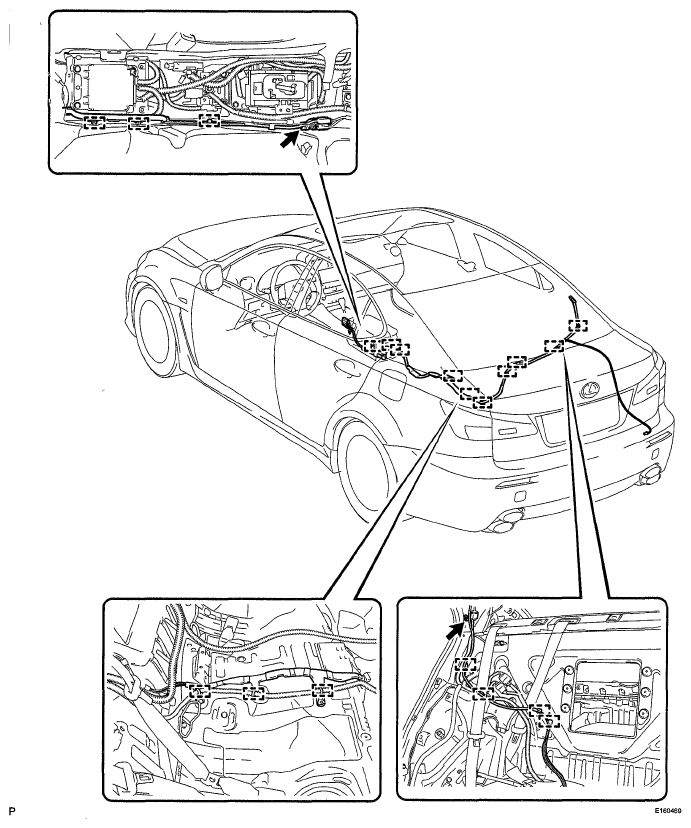

      Fig 2: Identifying Antenna Cord Clamps (W/ DVD Player)
      G05753480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    2. Engage the 10 clamps.
    3. Connect the connectors.
    4. Engage the 3 clamps
    5. Connect the connector
    Fig 3: Identifying Antenna Cord Clamps (W/ DVD Player)
    G05753479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)  (See INSTALLATION  )
  4. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)  (See INSTALLATION  )
  5. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)  (See INSTALLATION )
  6. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)  (See INSTALLATION )
  7. INSTALL ROPE HOOK (w/ DVD Player)  (See INSTALLATION )
  8. INSTALL NO. 2 ROOM LIGHT ASSEMBLY (w/ DVD Player)  (See INSTALLATION )
  9. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)  (See INSTALLATION )
  10. INSTALL ROPE HOOK ASSEMBLY (w/ DVD Player)  (See INSTALLATION  )
  11. INSTALL DECK SIDE TRIM BOX LH (w/ DVD Player)
  12. INSTALL DECK SIDE TRIM BOX RH (w/ DVD Player)
  13. INSTALL LUGGAGE COMPARTMENT TRIM COVER (w/ DVD Player)
  14. INSTALL ROOF SIDE INNER GARNISH

    HINT.

    Use the same procedure for the RH side and the LH side (See INSTALLATION ).

  15. INSTALL REAR SEAT SIDE GARNISH

    HINT

    Use the same procedure for the RH side and the LH side (See INSTALLATION )

  16. INSTALL REAR DOOR SCUFF PLATE

    HINT.

    Use the same procedure for the RH side and the LH side (See INSTALLATION )

  17. INSTALL REAR SEATBACK ASSEMBLY  (See INSTALLATION )
  18. INSTALL REAR SEAT HEADREST ASSEMBLY
  19. INSTALL REAR SEAT CUSHION ASSEMBLY  (See INSTALLATION )
  20. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. Engage the clamp and install the No. 2 antenna cord sub-assembly.
    Fig 4: Identifying No. 2 Antenna Cord Clamp
    G05753477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY  (See INSTALLATION )
  22. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  23. INSTALL NO. 1 CONSOLE BOX DUCT  (See INSTALLATION )
  24. INSTALL NO. 2 CONSOLE BOX DUCT  (See INSTALLATION )
  25. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See REMOVAL  )
  26. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
  27. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  28. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  29. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  30. INSTALL FRONT PILLAR GARNISH RH

    HINT

    Use the same procedure for the RH side and the LH side.

  31. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  32. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  33. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  34. INSTALL SIDE INSTRUMENT PANEL RH  (See INSTALLATION )
  35. INSTALL FRONT DOOR OPENING TRIM COVER RH  (See INSTALLATION )
  36. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT

    Use the same procedure for the RH side and the LH side.

  37. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  38. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  39. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  40. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  41. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  42. INSTALL SIDE INSTRUMENT PANEL LH  (See INSTALLATION )
  43. INSTALL FRONT DOOR OPENING TRIM COVER LH  (See INSTALLATION )
  44. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  45. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  46. INSTALL STEERING COLUMN COVER  (See INSTALLATION )
  47. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  48. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  49. INSTALL STEERING PAD  (See INSTALLATION )
  50. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  51. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  52. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  (See INSTALLATION  )
  53. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  (See INSTALLATION  )
  54. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  55. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  56. INSTALL CONSOLE BOX  (See INSTALLATION )
  57. INSTALL CONSOLE BOX REGISTER ASSEMBLY  (See INSTALLATION )
  58. INSTALL REAR ASH RECEPTACLE ASSEMBLY  (See INSTALLATION )
  59. INSTALL FRONT ASH RECEPTACLE ASSEMBLY  (See INSTALLATION )
  60. INSTALL CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  61. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH  (See INSTALLATION )
  62. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH  (See INSTALLATION )
  63. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  (See INSTALLATION )
  64. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  65. INSPECT STEERING PAD  (See INSTALLATION )
  66. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
