Instrument Panel Safety Pad: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION

    (See PRECAUTION  )

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
      Fig 1: Removing Shift Lever Knob Sub-Assembly
      G05755513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH
    1. Using a molding remover, disengage the claw.
      Fig 2: Removing Upper No. 1 Console Panel Garnish
      G05755514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the upper No 1 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it

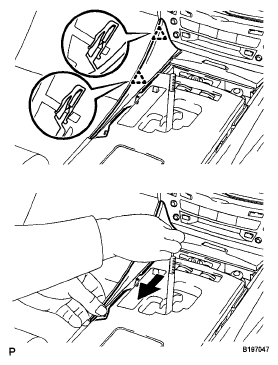

      Fig 3: Pulling Upper No 1 Console Panel Garnish
      G05755515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH
    1. Using a molding remover, disengage the claw.
      Fig 4: Identifying Claw
      G05755516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the upper No. 2 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.

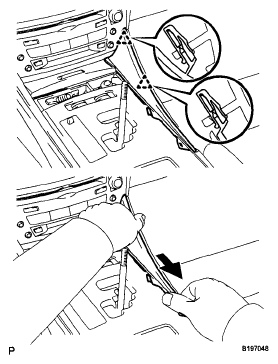

      Fig 5: Pulling Upper No. 2 Console Panel Garnish
      G05755517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CONSOLE PANEL SUB-ASSEMBLY
    1. Disengage the 8 clips
    2. Disconnect the connectors and remove the console panel sub-assembly.
      Fig 6: Removing Console Panel Sub-Assembly
      G05755518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT ASH RECEPTACLE ASSEMBLY
    1. Remove the 2 screws < E >.
      Fig 7: Identifying Screws
      G05755519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front ash receptacle assembly in the direction indicated by the arrow to disconnect the connectors and remove it.
    Fig 8: Pulling Front Ash Receptacle Assembly
    G05755520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR ASH RECEPTACLE ASSEMBLY  (See REMOVAL  )
  10. REMOVE CONSOLE BOX REGISTER ASSEMBLY  (See REMOVAL  )
  11. REMOVE CONSOLE BOX  (See REMOVAL  )
  12. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws

      HINT

      Tape the screwdriver tip before use.

      Fig 9: Disengaging Claws
      G05755521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply protective tape to the areas shown in the illustration.
      Fig 10: Identifying Protective Tape
      G05755522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a molding remover, disengage the 4 claws starting from the right of the No. 3 instrument panel register assembly. Disengage the remaining 3 claws by pulling the No. 3 instrument panel register assembly by hand.
      NOTE: Do not pry the lower part of the No. 3 instrument panel register assembly. Doing so may damage the assembly.
    4. Disconnect the connectors.
      Fig 11: Pulling No. 3 Instrument Panel Register Assembly By Hand
      G05755523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
    1. Disengage the 4 claws and remove the center lower instrument cluster finish panel
    Fig 12: Removing Center Lower Instrument Cluster Finish Panel
    G05755524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  (See REMOVAL )
  15. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  (See REMOVAL )
  16. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL )
  17. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL )
  18. REMOVE STEERING PAD  (See REMOVAL )
  19. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  20. REMOVE STEERING COLUMN COVER  (See REMOVAL )
  21. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See REMOVAL )
  22. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL  )
  23. REMOVE FRONT DOOR OPENING TRIM COVER LH  (See REMOVAL  )
  24. REMOVE SIDE INSTRUMENT PANEL LH
    1. Using a molding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel LH
      Fig 13: Identifying Claws And Clips For Side Instrument Panel LH
      G05755525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Remove the 2 screws < D >
    2. Push the 2 claws in the direction indicated by the arrow to disengage them.
    3. Remove the No 1 instrument panel under cover sub-assembly from the guide as shown in the illustration and pull the cover toward the rear of the vehicle
    4. Disconnect the connectors and remove the No. 1 instrument panel under cover sub-assembly.
      Fig 14: Identifying Claws For No. 1 Instrument Panel Under Cover Sub-Assembly
      G05755526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Disengage the 7 clips.
    2. Disconnect the connectors and remove the lower instrument panel finish panel sub-assembly.
    Fig 15: Removing Lower Instrument Panel Finish Panel Sub-Assembly
    G05755527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  28. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Remove the 2 screws < F > and 2 clips, and then remove the instrument cluster finish panel sub-assembly.
      Fig 16: Removing Instrument Cluster Finish Panel Sub-Assembly
      G05755528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE COMBINATION METER ASSEMBLY
    1. Using a screwdriver, disengage the 2 claws

      HINT

      Tape the screwdriver tip before use

    2. Disconnect the connectors and remove the combination meter assembly
    Fig 17: Removing Combination Meter Assembly
    G05755529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT

    Use the same procedure for the RH side and LH side (See REMOVAL  )

  31. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL  ).

  32. REMOVE SIDE INSTRUMENT PANEL RH
    1. Using a molding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel RH
      Fig 18: Removing Side Instrument Panel RH
      G05755530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Using a molding remover, disengage the 4 clips and remove the No 2 instrument panel under cover sub-assembly.
    Fig 19: Removing No. 2 Instrument Panel Under Cover Sub-Assembly
    G05755531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  35. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Remove the 5 screws < D >
    2. Disengage the 2 claws
    3. Disconnect the connectors and remove the glove compartment door assembly.
    Fig 20: Removing Glove Compartment Door Assembly
    G05755532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL  )
  37. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL  )

  38. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Pull the No 1 instrument panel register assembly in the direction indicated by the arrow to disengage the 7 claws and 2 clips, and then disconnect the connector and remove it

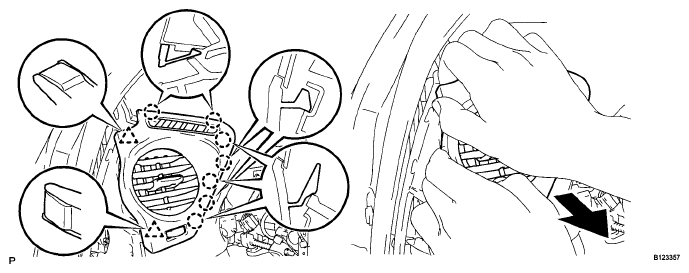

      Fig 21: Removing No. 1 Instrument Panel Register Assembly
      G05755533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Pull the No. 2 instrument panel register assembly in the direction indicated by the arrow to disengage the 4 claws and 2 clips, and then disconnect the connector and remove it
      Fig 22: Removing No. 2 Instrument Panel Register Assembly
      G05755534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 7 claws and 2 clips, and remove the No 3 instrument panel speaker panel sub-assembly

      HINT

      Tape the screwdriver tip before use

      2. Fig 23: Removing No. 3 Instrument Panel Speaker Panel Sub-Assembly
      G05755535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See REMOVAL )
  42. REMOVE NO. 2 CONSOLE BOX DUCT
    1. Remove the 2 clips and No 2 console box duct.
      Fig 24: Removing No. 2 Console Box Duct
      G05755536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE NO. 1 CONSOLE BOX DUCT
    1. Remove the clip and No. 1 console box duct.
    Fig 25: Removing Clip And No. 1 Console Box Duct
    G05755537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See REMOVAL )
  45. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
    1. Disengage the clamps.
    2. Disconnect the connectors
    3. Disengage the 2 claws and separate the cooler thermistor
      Fig 26: Removing Instrument Panel Safety Pad Assembly
      G05755538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 6 bolts < C > and nut < G >.
    5. Remove the 2 passenger airbag bolts < A > or < B >
    6. Disengage the 2 clamps.
    7. Disengage the 5 claws and remove the instrument panel safety pad assembly.

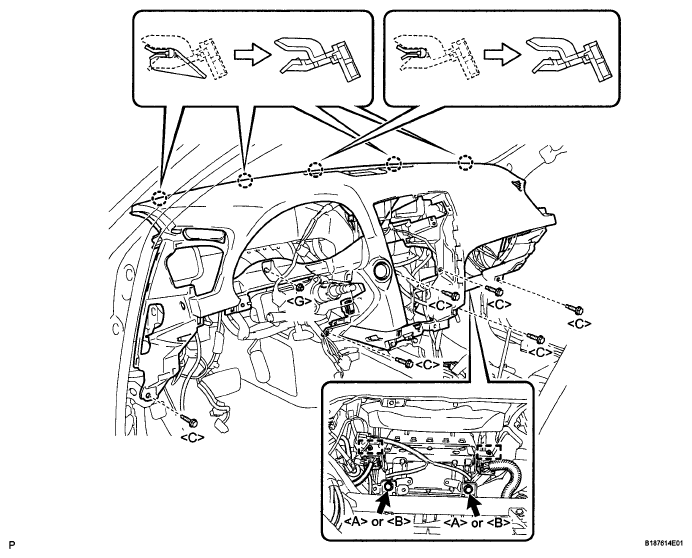

      Fig 27: Removing Instrument Panel Safety Pad Assembly
      G05755539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE INSTRUMENT PANEL CLIP
    1. Disengage the 4 claws and remove the 4 instrument panel clips.
      Fig 28: Removing Instrument Panel Clip
      G05755540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE INSTRUMENT PANEL STAY
    1. Disengage the claw and remove the instrument panel stay.
      Fig 29: Removing Instrument Panel Stay
      G05755541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
