Instrument Panel Safety Pad: Precaution

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION FOR VEHICLE WITH SRS AIRBAG AND SEAT BELT PRETENSIONER
1. Some operations in this article may affect the SRS airbags. Prior to performing the corresponding operations, read the SRS airbag NOTICE (See PRECAUTION ).
TABLE OF BOLT, SCREW AND NUT
HINT

The bolts, screws and nuts necessary for installation and removal of the instrument panel, are illustrated below and coded alphabetically.

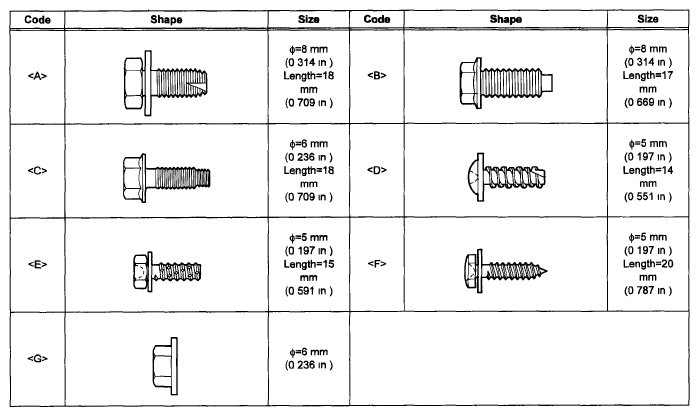

Fig 1: Bolt, Screw And Nut Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
