Instrument Panel Safety Pad: Removal

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet code in the chart below.

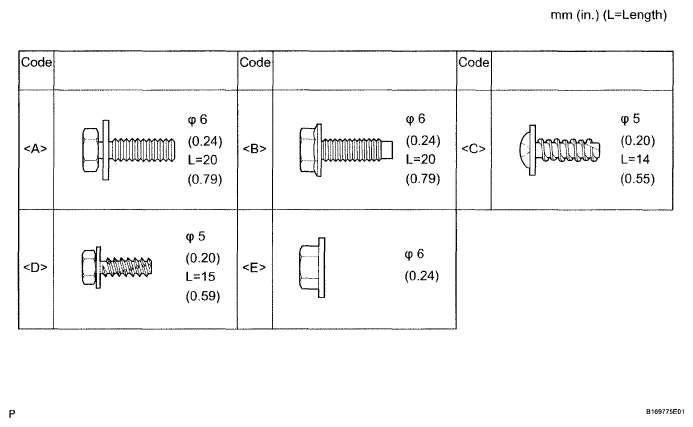

    Fig 1: Instrument Alphabet Code Chart For Bolt, Screw And Nut
    G05811889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
    1. Take out all discs and tape.
      NOTE: If the discs or tape cannot be taken out, do not attempt to take them out forcibly. Send the unit to a repair shop.
    2. Turn the engine switch off.
    3. While simultaneously pressing the "SEEK UP" and "DISC" switches, turn the engine switch on (ACC).

      HINT:

      The CD loading door indicator light blinks during mode setting and it remains lit after the setting is completed.

      Fig 2: Locating Disc Switch
      G05811890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the engine switch off.
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
    Fig 3: Blinking CD Loading Door Indicator Light
    G05300354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  5. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  6. REMOVE FRONT DOOR OPENING TRIM COVER RH  (See REMOVAL )
  7. REMOVE FRONT DOOR OPENING TRIM COVER LH  (See REMOVAL )
  8. REMOVE STEERING WHEEL NO. 2 COVER LOWER  (See REMOVAL )
  9. REMOVE STEERING WHEEL NO. 3 COVER LOWER  (See REMOVAL )
  10. REMOVE STEERING PAD  (See REMOVAL )
  11. REMOVE STEERING WHEEL ASSEMBLY
    1. Remove the steering wheel assembly, for 2GR-FSE (See REMOVAL ) for 1UR-FSE (See REMOVAL )
  12. REMOVE STEERING COLUMN COVER LOWER
    1. Remove the steering column cover lower, for 2GR-FSE (See REMOVAL ) for 1UR-FSE (See REMOVAL )
  13. REMOVE STEERING COLUMN COVER UPPER
    1. Remove the steering column cover upper, for 2GR-FSE (See REMOVAL ) for 1UR-FSE (See REMOVAL )
  14. REMOVE SPIRAL CABLE WITH STEERING SENSOR  (See REMOVAL )
  15. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY  (See REMOVAL )
  16. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY  (See REMOVAL )
  17. REMOVE FRONT CONSOLE UPPER PANEL GARNISH
    1. Using a clip remover, detach the claws and remove the garnish.

      HINT:

      Tape the clip remover tip before use.

      Fig 4: Detaching Claw
      G05300355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE CONSOLE UPPER PANEL ASSEMBLY
    1. Turn the shift lever knob in the direction indicated by the arrow and remove it.
      Fig 5: Turning Shift Lever Knob
      G05811893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the 9 clips.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the ash receptacle and then disconnect the connector.
      Fig 6: Turning Shift Lever Knob
      G05811894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
    1. Remove the screw.
    2. Using a screwdriver, detach the 3 clips and 3 claws.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the finish panel end.
      Fig 7: Identifying Instrument Panel Finish Panel End Clips And Claws
      G05300358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
    1. Remove the screw.
    2. Using a screwdriver, detach the 4 clips and 3 claws.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the finish panel end.
      Fig 8: Detaching Clips And Claws
      G05300359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE CONSOLE BOX PLATE
    1. Using a screwdriver, detach the 4 clips.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the console box plate and then disconnect the connector.
      Fig 9: Identifying Console Box Plate Claws
      G05300360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE CONSOLE BOX REGISTER ASSEMBLY
    1. Using a screwdriver, detach the 4 clips and remove the register.

      HINT:

      Tape the screwdriver tip before use.

      Fig 10: Identifying Console Box Register Assembly Clips
      G05300361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE CONSOLE BOX
    1. Remove the 4 bolts and 2 screws.
    2. Remove the console box and then disconnect the connector.
      Fig 11: Identifying Console Box Bolts And Screws
      G05300362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Using a screwdriver, detach the 5 clips.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the cluster finish panel and then disconnect the connector.
      Fig 12: Identifying Instrument Cluster Finish Panel Sub-Assembly Clips
      G05300363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE COMBINATION METER ASSEMBLY
    1. Remove the 4 screws.
    2. Disconnect the connector and remove the combination meter.
      Fig 13: Locating Combination Meter Assembly Screws
      G05300364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE INSTRUMENT SIDE PANEL RH
    1. Using a screwdriver, detach the 2 claws and 4 clips, and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

      Fig 14: Identifying Instrument Side Panel RH Clips And Claws
      G05811902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE INSTRUMENT SIDE PANEL LH
    1. Using a screwdriver, detach the 2 claws and 4 clips, and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

      Fig 15: Identifying Instrument Side Panel LH Claws And Clips
      G05300366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY
    1. Remove the 2 screws.
    2. Detach the 3 claws.
    3. Remove the under cover and then disconnect the connector.
      Fig 16: Identifying Instrument Panel No. 1 Under Cover Sub-Assembly Screws And Claws
      G05300367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY
    1. Using a screwdriver, detach the 3 clips and 5 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the hood lock control cable from the safety pad.
    3. Disconnect the connector.
    4. Remove the safety pad.
  30. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
    Fig 17: Identifying Instrument Panel No. 1 Safety Pad Sub-Assembly Clips And Claws
    G05811905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Remove the 2 screws.
    2. Using a screwdriver, detach the 2 claws.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the control panel and then disconnect the connector.
      Fig 18: Locating Integration Control And Panel Assembly Screws
      G05811906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
    1. Using a screwdriver, detach the 4 clips.

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the connector and clamp, and remove the under cover.
  33. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
    Fig 19: Identifying Instrument Panel No. 2 Under Cover Sub-Assembly Clips
    G05300370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
    1. Remove the 4 screws.
    2. Detach the 2 clips and claw.
    3. Disconnect the connector and clamp.
    4. Remove the glove compartment door.
  35. REMOVE FRONT PILLAR GARNISH RH  (See REMOVAL )
  36. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  37. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  (See REMOVAL )
    Fig 20: Identifying Glove Compartment Door Sub-Assembly Screws And Clips
    G05300371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. w/ Navigation system:

      Remove the navigation ECU.

      1. Remove the 3 bolts and navigation ECU.
      2. Disconnect the connectors.
    2. Remove the 4 nuts and center junction block RH and LH.
    3. Remove the 4 bolts, nut and 2 clips.
    4. Remove the 2 bolts from the passenger airbag.
    5. Disconnect the connectors and clamps.
    6. Detach the 5 clips and remove the safety pad.
      Fig 21: Identifying Instrument Panel Safety Pad Sub-Assembly Bolts
      G05300372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

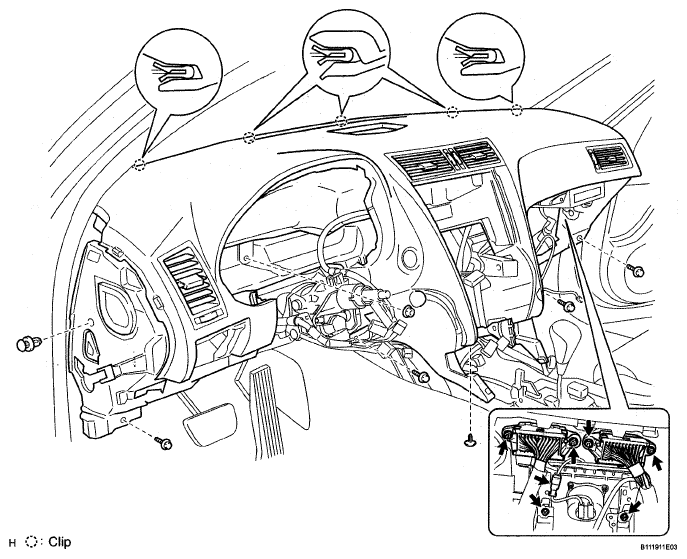

      Fig 22: Identifying Instrument Panel Safety Pad Sub-Assembly Bolts And Nut With Clips
      G05300373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
