Spiral Cable: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE STEERING WHEEL NO.3 COVER LOWER  (See REMOVAL  )
  4. REMOVE STEERING WHEEL NO.2 COVER LOWER  (See REMOVAL  )
  5. REMOVE STEERING PAD  (See REMOVAL  )
  6. REMOVE STEERING WHEEL ASSEMBLY

    For 2GR-FSE (See REMOVAL )

    For 1UR-FSE (See REMOVAL )

  7. REMOVE STEERING COLUMN COVER

    For 2GR-FSE (See REMOVAL )

    For 1UR-FSE (See REMOVAL )

  8. REMOVE SPIRAL CABLE with STEERING SENSOR
    1. Disconnect the connectors from the spiral cable with steering sensor.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Disengage the 3 claws and remove the spiral cable with steering sensor.

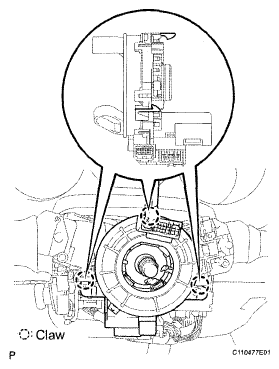

      Fig 1: Identifying Spiral Cable With Steering Sensor Claws
      G05298302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. SEPARATE SPIRAL CABLE
    1. Disengage the 6 claws and separate the spiral cable.
