Front Passenger Side Knee Airbag Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

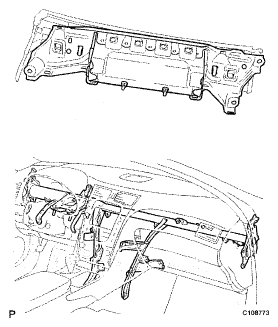

    Fig 1: Identifying Front Passenger Side Knee Airbag Assembly Removed From Vehicle
    G05298326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT DOOR SCUFF PLATE  (See REMOVAL )
  3. REMOVE FRONT DOOR OPENING TRIM COVER  (See REMOVAL )
  4. REMOVE CONSOLE UPPER PANEL GARNISH FRONT  (See REMOVAL )
  5. REMOVE FRONT ASH RECEPTACLE ASSEMBLY  (See REMOVAL )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL END  (See REMOVAL )
  7. REMOVE INSTRUMENT SIDE PANEL  (See REMOVAL )
  8. REMOVE INSTRUMENT PANEL UNDER NO.2 COVER SUB-ASSEMBLY  (See REMOVAL )
  9. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
    1. Remove the 3 bolts and front passenger side knee airbag assembly.
    2. Disconnect the connector.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
      Fig 2: Locating Front Passenger Side Knee Airbag Assembly Bolts
      G05298327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
